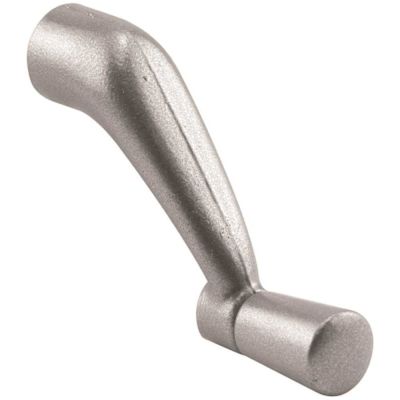

Prime-Line 5/16 in. Aluminum Casement Operator Crank Handle
Product Overview
This is a casement crank handle is aluminum diecast and has a 5/16 inch bore spindle. This fits any operator with a 3/8 inch bore spindle such as the teardrop style casement operators (Prime-Line parts H 3502 and H 3508). It offers excellent torque for easy opening and closing of windows. The crank handle projects out from the operator 2-11/16 inch
- Used by a variety of window manufacturers
- Fits 5/16 inch spindle and has a 2-11/16 inch projection from the operator
- Diecast aluminum design with an aluminum finish
- Anchors on your window operator with a set screw
- DIMENSIONS - The crank window replacement parts feature a 3/8 inch bore spindle and a 3-1/8 inch reach; for further dimensional information, please see the line drawing
Documentation
Owner's ManualSpecifications
Builders Hardware Product Type
Window Handle
Finish
White
General Material
Aluminum
Manufacturer Warranty
Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Product Depth (in.)
0.875
Product Length (in.)
2.6875
Product Width (in.)
3.813
Warranty
Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
