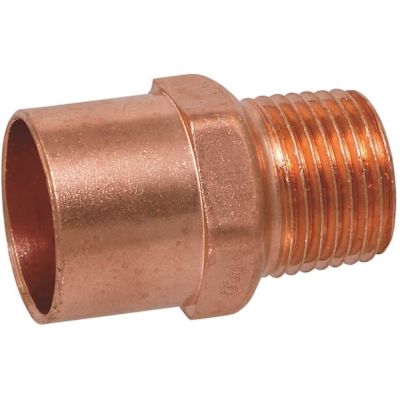

NIBCO 3/4 in. x 1 in. Copper Pressure Cup Male Adapter Fitting

Item # 100343544 | NIBCO Part # I604341 | UPC Code 039923303363 | UNSPSC Code 40172612 | Catalog Page #389
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

This 3/4 in. x 1 in. Copper Pressure Male Adapter, Cup x MIPT (Male NPT Thread) is suitable for above ground use for water supply. These fittings rely on pressure to sustain flow and is used in residential and commercial systems such as potable water, air conditioning and refrigeration. Options also include cleaned and bagged for oxygen service (medical gas).

  • Material and workmanship per ASME B16.22
  • Solder connections
  • Adapts to standard female pipe threads
  • De-zincification resistant to protect mechanical strength
  • UL 207 recognized to 700 psi (select diameters)
  • Size range 1/8 in. to 4 in.

Documentation

Specifications

Color
Copper
Connection 1
Copper Sweat
Connection 2
MIP
Features
Corrosion Resistant, Lead Free
Fitting 1 size
3/4"
Fitting 2 size
1"
Fitting or Connector Type
Adapter
Manufacturer Warranty
The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.
Material
Copper
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Length (in.)
2.25
Product Weight (lb.)
0.258
Standard Color Family
Copper

Warranty

The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.
