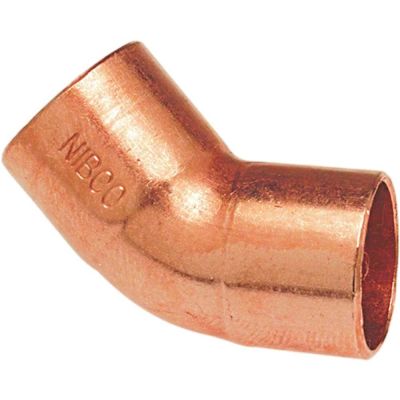

Everbilt 1-1/2 in. Copper Pressure 45-Degree Cup x Cup Elbow Fitting

Everbilt 1-1/2 in. Copper Pressure 45-Degree Cup x Cup Elbow Fitting

Item # 100344558 | Everbilt Part # C606 | UPC Code 039923311344 | UNSPSC Code 40172812 | Catalog Page #388

Log in to see your price.



Everbilt 1-1/2 in. Copper Pressure 45-Degree Cup x Cup Elbow Fitting

Item # 100344558 | Everbilt Part # C606 | UPC Code 039923311344 | UNSPSC Code 40172812 | Catalog Page #388
Everbilt 1-1/2 in. Copper Pressure 45-Degree Cup x Cup Elbow Fitting
Open Expanded View
Qty:

Log in for product availability.

Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print
Product Overview Documentation Specifications Warranty

Product Overview

The 1-1/2 in. Copper Pressure 45 degree Cup x Cup Elbow helps you complete the installation of aboveground water-supply piping. This copper fitting resists dezincification and changes the direction of piping 45 degree . Features solder connections and a maximum working pressure of 408 psi.

  • 11/2 in. Inside Diameter and 1.625 in. Outside Diameter
  • Copper construction
  • For use with aboveground water-supply piping
  • Changes the direction of piping 45 degree
  • Solder connections
  • Resists dezincification
  • Meets ANSI B16.22 and ASME specifications
  • Maximum working pressure of 408 psi

Documentation

Warranty

Specifications

Bend Degree
45 Degree
Color
Copper
Connection 1
Copper Sweat
Connection 2
Copper Sweat
Features
Corrosion Resistant, Lead Free
Fitting 1 size
1-1/2"
Fitting 2 size
1-1/2"
Fitting or Connector Type
Elbow
Manufacturer Warranty
The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.
Material
Copper
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Depth (in.)
3.5
Product Height (in.)
1.74
Product Weight (lb.)
0.35
Product Width (in.)
2.71
Standard Color Family
Copper

Warranty

The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.
