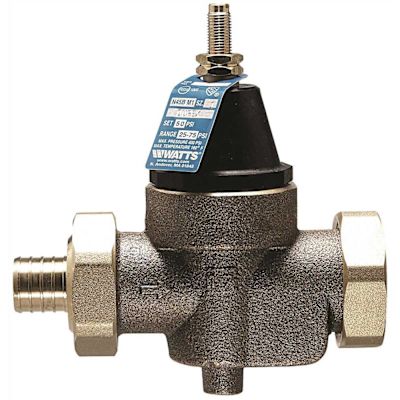

Watts 3/4 in. Pressure Reducing Brass Valve with Bypass Feature PEX 50 psi, Lead free

Item # 1030794 | Watts Part # 3/4 LFN45BM1-DU-PEXXPEX | UPC Code 098268332520 | UNSPSC Code 40141652 | Catalog Page #453
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

This 3/4 in. lead free water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a brass body, integral stainless steel strainer and thermal expansion bypass. It features double union PEX end connections. The maximum working pressure is 400 psi (27.6 bar), and may be adjusted from 25 to 75 psi (172 to 517 kPa). The standard setting is 50 psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line.

  • Lead free body construction
  • PEX union inlet and outlet
  • Integral stainless steel strainer
  • Sealed spring cage for accessible outdoor or pit installations
  • Double union inlet and outlet NPT connections
  • Thermoplastic seat and cage
  • Bypass feature controls thermal expansion pressure

Proposition 65 Information

Prop65 Warning Icon WARNING: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Connection
Barb x Barb
Features
Lead Free
Indoor/Outdoor
Indoor, Outdoor
Manufacturer Warranty
1 year
Material
Brass
Pack Size
1
Product Height (in.)
7.375
Product Length (in.)
2.437
Product Weight (lb.)
2.2
Product Width (in.)
5.625
Valve Type
Pressure Relief
Certifications
LEAD-FREE

Warranty

1 year
