Lithonia Lighting Contractor Select L7X Series 6 in. Air Tight New Construction Incandescent Recessed Housing

Item # 202514308 | Lithonia Lighting Part # L7X R6 | UPC Code 784231091906 | UNSPSC Code 39111505
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

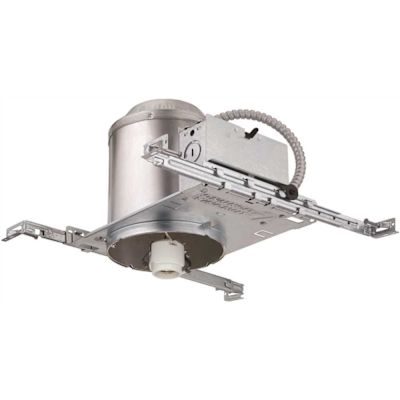

Recessed incandescent housings for 2 in. x 8 in. new construction applications. Approved for direct burial in insulation and all ceiling and wiring types. Air-tight, galvanized steel pan with aluminum can and junction box with 4 built-in ROMEX clamps and ground wire. Factory-installed captive bar hangers that span up to 24 oz. and feature stepped shank nail with integral T-bar locks. 2 locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.

  • Aluminum housing
  • Ground wire provided
  • Removable J-box doors for easy access
  • Retaining clips riveted to top of reflector hold trim inside housing
  • Damp location listed
  • Suitable for ceilings up to 1-1/2 in. thick
  • Trim options include 6 in. open, baffle and eyeball (sold separately)
  • All trims are available in a white finish (sold separately)

Specifications

Certifications and Listings
IC Rated, UL Listed
Damp/Wet Rating
Damp Rated
Features
No Additional Features
IC Rated
IC Rated
Included
Mounting Brackets
Indoor/Outdoor
Indoor
Light Bulb Base Code
E26
Manufacturer Warranty
1 year
Pack Size
1
Product Height (in.)
6.875
Product Weight (lb.)
1.8
Product Width (in.)
7

Warranty

1 year
