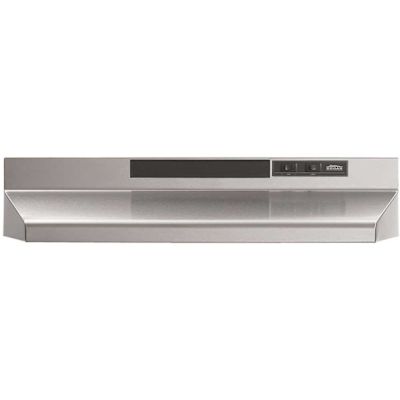

Broan-NuTone F40000 30 in. 230 Max Blower CFM Convertible Under-Cabinet Range Hood with Light in Stainless Steel

Item # 202841974 | Broan-NuTone Part # F403004 | UPC Code 026715142996 | UNSPSC Code 52141546
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, and control switches for fan speed and light activation

  • Provides installation flexibility with 4-way convertibility to fit virtually all applications
  • Simple to use rocker switches let you adjust the fan speed and the light setting separately
  • Two fan speeds help you tackle a variety of venting jobs
  • 230 MAX Blower CFM quickly removes smoke and cooking odors from the air
  • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
  • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
  • Uses an LED light to brightly illuminate the cooking area (bulb sold separately)
  • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
  • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
  • One year limited warranty
  • UL listed and HVI 2100 certified
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am - 7:00 pm EST.

Specifications

Amperage
2.5
Certifications and Listings
ANSI Certified, UL Listed
Color
Stainless Steel
Color/Finish Family
Stainless Steel
Included
Fan, Filter(s), Hardware
Indoor/Outdoor
Indoor
Manufacturer Warranty
Limited 1 year
Mounting Type
Under Cabinet
Number of Speeds
2
Pack Size
1
Product Depth (in.)
17.5
Product Height (in.)
6
Product Weight (lb.)
11.97
Product Width (in.)
29.875
Voltage
120
Wattage
240

Warranty

Limited 1 year
