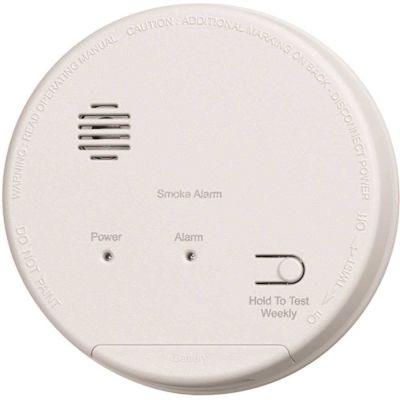

Gentex Hardwired Interconnected Photoelectric Smoke Alarm Detector with Dualink, Battery Backup and Relay Contacts
Item # 202934240
|
Gentex
Part #
S1209F
|
UPC Code 700217030233
|
UNSPSC Code 46191501
|
Catalog Page #1133
Product Overview
The Gentex S1209F photoelectric smoke alarm is for use as an evacuation device in all dwelling units, including but not limited to homes, apartments, hospitals and hotels/motels. The S1209F is engineered to eliminate nuisance alarms and deliver outstanding performance wherever reliable smoke detection is required. The S1209F is listed in compliance with ANSI/UL 217.
- 120 VAC with 9VDC battery back-up
- Temporal 3 evacuation piezo horn with a 3100Hz (nominal) horn frequency
- Form A/form C relay contacts
- Relay contacts operate when on battery back-up
- Push button self-test feature
- DUALINK feature: tandem with all Gentex tandem capable alarms
- Quick disconnect wiring harness
- Dust cover to prevent particle contamination during installation
- Low or missing battery indicator
- 1-year warranty from date of purchase
Proposition 65 Information
WARNING: Cancer and Reproductive Harm https://www.p65warnings.ca.gov/
Specifications
Alarm Sensor Type
Photoelectric
Certifications and Listings
UL Listed
Features
Battery Back-Up, Tamper Resistant
Included
Batteries, Battery Back-Up
Mount Type
Fixed
Pack Size
1
Power Source
Hardwired
Product Depth (in.)
1.8
Product Height (in.)
6.25
Product Width (in.)
6.25
Voltage
120
