Product Overview

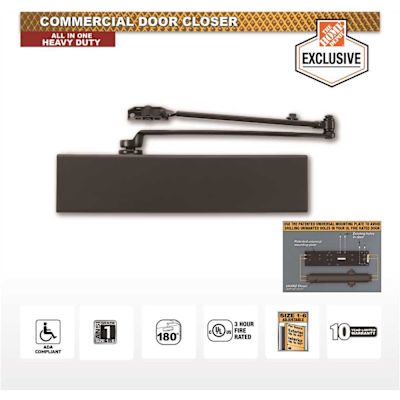

The Universal Hardware All-in-One Bronze closer is designed to replace a majority of closer applications that exist in the door closer industry. Packaged with a patented mounting plate that is prepared to allow the installer ease of installation by aligning the plate with the existing door preparation. The adjustable spring tension powers these closers from a Size 1 to a Size 6 (which allows for power adjustment for light to very heavy applications).

• Universal mounting plate: Pre-drilled steel plate matches hole patterns of most closers in the market
• Meets ANSI Grade 1 standards for heavy-duty use;Able to be used indoors or outdoors
• Warranty: Limited 10-year warranty covers finish and function
• UL Listed: 3-hour fire rated for added protection and meeting building requirements
• Adjustable closing and latching speeds eliminate door slamming
• Adjustable back check helps prevent wind damage for exterior facing doors
• Opening range: 180-degree for added convenience and pass-through space
• Mounting: Standard, top jamb or parallel mounting
• Adjustable sizing 1-6: Provides ability to use in a variety of applications from light to heavy duty
• Interior doors: Left or right hinged doors up to 250 lbs and 60" wide
• Exterior doors: Left or right hinged doors up to 250 lbs. and 48" wide

Proposition 65 Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

Specifications

Warranty

10 year
