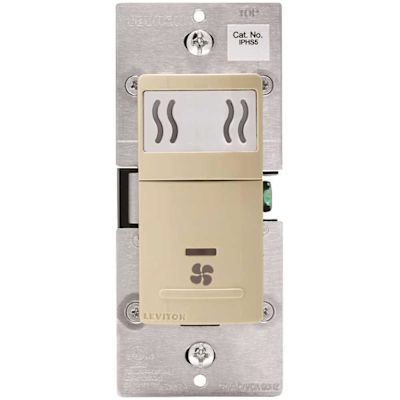

Leviton Decora In-Wall Humidity Sensor & Fan Control, 3 A, Single Pole, Ivory

Item # 2469688 | Leviton Part # IPHS5-1LI | UPC Code 078477654835 | UNSPSC Code 39122200 | Catalog Page #1010
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The Leviton Humidity Sensor and Fan Control automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew. The sensor uses a microprocessor combined with state-of-the-art digital sensing technology to continuously monitor and manage humidity levels in areas of the home prone to condensation and mildew. It features user-friendly controls to adjust sensitivity, humidity level and time out settings. The sensor can replace a single pole switch and can be used with most bathroom or ventilation fans or fan/light combinations. It is designed to fit within a standard wall box and requires a neutral wire for operation. Contemporary in design, the Humidity Sensor and Fan Control is the ideal solution for controlling ventilation in areas of high humidity, dampness or rooms prone to condensation and mildew such as: Bathrooms, Basements, Laundry Rooms and Home Spas. The sensor also helps reduce energy usage by automatically operating the fan only when needed to control excess humidity.

  • Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
  • Sensor uses microprocessor and digital sensing technology to continuously monitor and manage humidity levels in a room
  • Replaces a single pole switch for control of ventilation fan or a fan/light combination
  • 600W incandescent, 150W LED/CFL, 4-Amp inductive/ballast, 1/6th HP motor

Proposition 65 Information

Prop65 Warning Icon WARNING: These products may contain a chemical known to the State of California to cause cancer, birth defects or other reproductive harm - www.P65Warnings.ca.gov

Specifications

Amperage
3, 3 amp
Color
Ivory
Commercial/Residential
Residential
Features
No Additional Features
Indoor/Outdoor
Indoor
Manufacturer Warranty
5-Year Limited
Mounting Type
In-Wall
Product Depth (in.)
1.22
Product Height (in.)
4.13
Product Width (in.)
1.75
Standard Color Family
White
Voltage
120 volt
Wattage
600, 600 watts
Certifications
UL

Warranty

5-Year Limited
