Product Overview

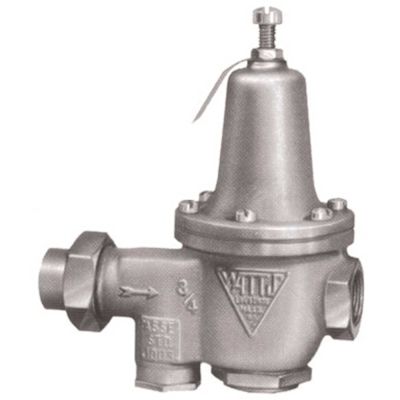

This 3/4 in. high performance water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body, 3/4 inch NPT threaded female union inlet x NPT female outlet, replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degree C). Suitable for up to 300 psi (20.7 BAR), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• Serviceable in line without special tools
• High temperature resistant reinforced diaphragm for hot water
• 3/4 in. NPT threaded female union inlet by NPT female outlet
• Pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi
• Bypass feature controls thermal expansion pressure

Proposition 65 Information

WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Warranty

1 Year
