Product Overview

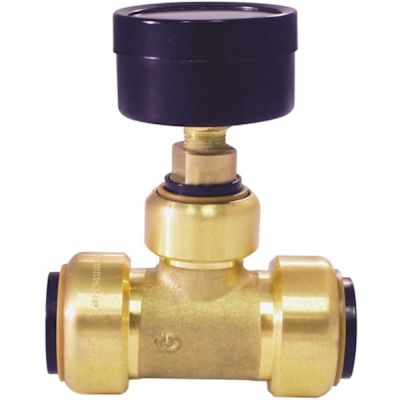

Tectite by Apollo pressure gauge offers fast push-to-connect installation in copper, CPVC and PEX piping systems. The Tectite by Apollo pressure gauge may be installed in temporary or permanent applications. The Tectite by Apollo pressure gauge is used to monitor pressures within CPVC, PEX, or copper piping systems.

• Constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
• Specifically designed to allow transitions between copper, CPVC and PEX to polybutylene pipe
• Push-to-connect design allows for a simple and fast installation on any combination of copper, PEX, CPVC or PE-RT pipe
• Fittings can be rotated after being installed for ease of use in tight spaces
• Ideal for potable water and hydronic heating applications
• Listed by IAPMO and listed to ASSE 1061/NSF 71
• Meets UPC, IPC and cUPC standard requirements
• Demount clip allows for fitting removal (sold separately)
• Approved for behind-the-wall with no access and burial
• Corrosion resistant for greater longevity
• Maximum working pressure of 200 psi and maximum temperature of 250 degree F

Proposition 65 Information

WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Further information available at www.p65warnings.ca.gov.

Specifications

Warranty

Lifetime: For exclusive use with:PEX - ASTM F876/CSA B137.5Copper - ASTM B 88 hard drawn copper tube K, L, & MCPVC - ASTM D2846 or CSA B137.6PE-RT - ASTM F2769
