Champion Power Equipment Truck/SUV Synthetic Rope Winch Kit with Hawse Fairlead

Item # 302772331 | Champion Power Equipment Part # 100427 | UPC Code 817198020754 | UNSPSC Code 24101608
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

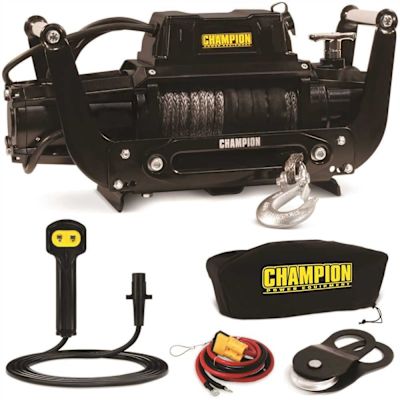

The Champion Power Equipment 100427 12,000 lbs. Truck/SUV Synthetic Rope Winch Kit is designed for powerful and reliable winching with your truck or SUV. With a rated line pull of 12,000 lbs., this winch installs quickly with our Speed Mount 2 in. hitch adapter. Mount this winch on your truck or SUV with the included mounting adapter to quickly harness the strength of its 6.0HP (12-Volt DC) series wound motor. The convenient handles are 3-position adjustable, plus they serve as side guards to protect your winch. With a gear reduction ratio of 216:1, the winch boasts a line speed of 2.3 ft. per minute with a full load, and 15.7 ft. per minute with no load. Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won't fray or curl. Designed with a stainless steel thimble and protective sleeve, the 85 ft. x 11/32 in. synthetic winch rope has a minimum break strength of 15,000 lbs. and is guided onto the 2.5 x 8.8 in. drum through the fairlead. Featuring a black anodized finish, the light weight aluminum hawse fairlead is precisely machined to maximize the life of the rope. The efficient 3-stage planetary gear, braking system and free spooling clutch along with the hand-held quick-connect remote control and 12 ft. cable offer excellent control while winching. Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and free lifetime technical support.

  • Powerful 12,000 lbs. rated line pull powered by a 6.0 HP (12-Volt) DC series wound motor
  • Efficient line speed of 2.3 ft. per minute with a full load, and 15.7 ft. per minute with no load
  • Convenient speed mount 2 in. hitch adapter, included hand-held quick-connect remote control and free-spooling clutch create an easier than ever winching experience
  • Hassle-free the hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won't kink, has less recoil than steel and floats
  • Reliable - champion support includes 2-year limited warranty with free lifetime technical support from dedicated experts

Proposition 65 Information

Prop65 Warning Icon WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm - http://www.p65warnings.ca.gov/

Specifications

Automotive Maintenance & Repair Type
Trailer Hitch
Cord Length (ft.)
85
Horsepower
0
Line pull capacity (lb.)
12000
Manufacturer Warranty
2 years
Material
Synthetic Fiber
Motor Type
Series Wound
Product Depth (in.)
22.3
Product Height (in.)
10.1
Product Weight (lb.)
95.9
Product Width (in.)
22.3

Warranty

2 years
