Anvil Mark Roller Assembly, 1-1/8 in. Steel Ball Bearing, Adjustable
Product Overview

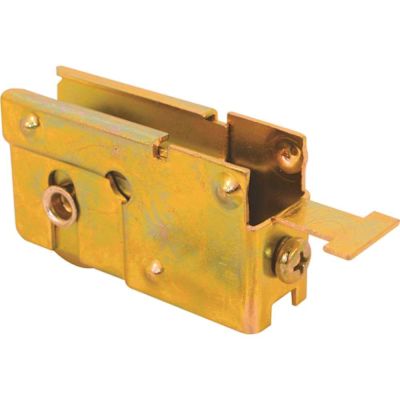

This is a "K" tab patio door roller assembly with a 1-1/8 in. concave steel ball bearing roller. The "T" shaped tab (K-tab) is simply slid up into a T shaped receptacle in the bottom of the patio door. No screws are required for installation. The housing is 3/4 in. wide and 1-1/4 in. tall with a 7/8 in. dimple width. The dimples secure it within the door's bottom frame. Used by a variety of door manufacturers.
- Housing dimensions: width 3/4 in., length is 2-5/16 in., and height is 1-1/4in.
- Overall thickness is 7/8 in.
- Used by several manufacturers
- 1-1/8 in. steel ball bearing roller
- Provides smooth operation
- Easy to install
- For further dimensional information, please see the line drawing
Specifications
Builders Hardware Product Type
Door Roller
Finish
Steel
General Material
Metal
Hardware Finish Family
Gold
Manufacturer Warranty
Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Package Quantity
1
Product Depth (in.)
2.25
Product Height (in.)
1.25
Product Width (in.)
0.75
Wheel Material
Metal
Warranty
Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
