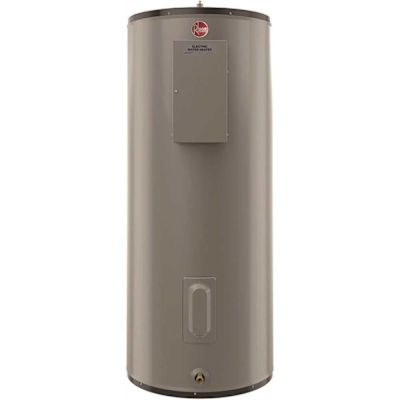

Rheem Commercial Light-Duty 50 Gal. Tall 3-Year 208v 9000-Watt Multi-Phase Field Convertible Electric Tank Water Heater

Item # 305229230 | Rheem Part # ELD52-TB 208 VOLT 9 KW | UPC Code 020352683621 | UNSPSC Code 40101826
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

  • Rheem's light-duty commercial electric water heaters with Terminal Block are field convertible to meet any Light-Duty hot water application need. Easily convert standard models from simultaneous to non-simultaneous and single phase to three phase. Models range from 30 Gal. through 50 Gal. They are available in 3kW through 12kW and in 208-Volt, 240-Volt, 277-Volt and 480-Volt. Short models are available. All models shipped in simultaneous configuration.
  • 50 Gal. 208V 9kW Multi-Phase Field Convertible Electric Tank Water Heater
  • Terminal Block Enables Easy Field Level Conversion For A Variety Of Light-Duty Applications
  • Easy To Convert Standard Models From Simultaneous To Non-Simultaneous, Single Phase To 3 Phase
  • Factory Shipped In Simultaneous Configuration
  • Energy Efficient Design Reduces Energy Consumption And Standby Heat Loss With 2-1/2 In. Of Rigid Polyurethane Foam Insulation
  • Automatic Temperature Control With Surface Mounted Thermostat Automatically Cycles On And Off To Maintain Desired Water Temperature
  • Proprietary Protective Steel Formulation With A Unique Coat Of High Temperature Porcelain Enamel
  • Design Maximizes Corrosion Resistance And Life Of Anode Rod
  • Patented Corrosion-Resistant Elements Include Double Layer Of Magnesium Oxide And Copper To Resist Corrosion
  • Durable Factory-Installed Full Flow Brass Drain Value
  • Low-Lead Compliant
  • 3-Year Limited Tank Warranty, Upgradable To 5-Years
  • These Products Are Design Certified By Underwriters Laboratories (Ul) To Meet Ul Safety Standards As Electric Storage Tank Water Heaters.
  • These Light Duty Models Are Available With Terminal Block In Both Fused And Non-Fused Configurations. All Water Heaters With Power Requirements Over 48 Amps Come Standard In The Fused Configuration.
  • MFG# ELD52-TB 208 VOLT 9 KW

Proposition 65 Information

Prop65 Warning Icon WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications

Amperage
43.27 amp
Commercial/Residential
Commercial
Features
Temperature Pressure Relief Valve;Overheat Protection;Glass-Lined Tank
Includes
Brass Drain Valve
Maximum Pressure
150 PSI
Phase
Multi
Tank Capacity
50 gal.
Voltage
208 V
Water Connection Location
Top
Wattage
9000 W
