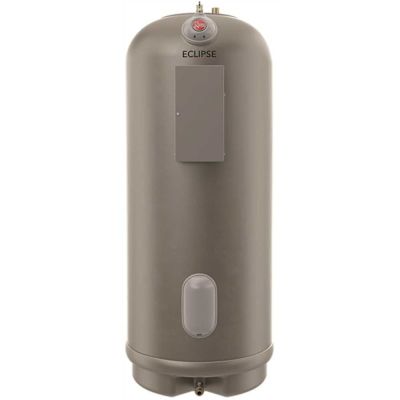

Rheem Marathon Eclipse 105 Gal. Tall 10-Year 277-Volt 12k-Watt Non-Metallic Electric Water Heater

Item # 305422282 | Rheem Part # MELD105-TB 277 VOLT 12 KW | UPC Code 020352690797 | UNSPSC Code 40101826
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

  • Rheem Marathon Eclipse Light-Duty non-metallic electric water heaters are designed for harsh environments and have the 10 year limited warranty to back it up. One of the most durable electric water heaters available Marathon Eclipse is constructed of multiple layers of filament-wound fiberglass that give the tank unmatched strength and eliminates the need for an anode rod. The polyethylene outer shell resists dents scratches and salt air. All models are field convertible to meet any Light-Duty hot water application need. Easily convert standard models from simultaneous to non-simultaneous and single phase to 3 phase. Marathon Eclipse is available in 75 Gal. 85 Gal. and 105 Gal. capacities.
  • Marathon Eclipse 105 Gal. 12kW 277V Non-Metallic Electric Water Heater
  • Terminal Block Enables Easy Field Level Conversion For A Variety Of Light-Duty Applications
  • Easy To Convert Standard Models From Simultaneous To Non-Simultaneous, Single Phase To 3 Phase
  • Factory Shipped In Simultaneous Configuration
  • Non-Metallic, Seamless, Blow-Molded Polybutene Inner Tank Protects Against Rust And Corrosion
  • All Plastic Tank Eliminates The Need For An Anode Rod
  • Tough Molded Polyethylene Outer Shell Resists Dents, Scratches And Salt Air
  • Recessed Brass Drain Valve Is Out The Way Of Brooms And Scrubbers
  • Titanium Upper And Lower Elements For Superior Resistance To Lime Build-Up
  • Polyurethane Insulation Reduces Energy Consumption And Standby Heat Loss
  • Lightweight Tank Is Easier To Maneuver And Position
  • Designed For Harsh Environments And Have The 10 Year Limited Warranty To Back It Up
  • Pipe Wrap Kit Included To Achieve Maximum Energy Savings
  • Bowl Shaped Tank Bottom Allows Complete Sediment Draining
  •
  • MFG# MELD105-TB 277 VOLT 12 KW

Proposition 65 Information

Prop65 Warning Icon WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications

Amperage
43 amp
Commercial/Residential
Commercial
Features
Temperature Pressure Relief Valve;Glass-Lined Tank
Includes
Temperature Pressure Relief Valve
Phase
Multi
Tank Capacity
105 gal.
Voltage
277 V
Water Connection Location
Top
Wattage
12000 W
