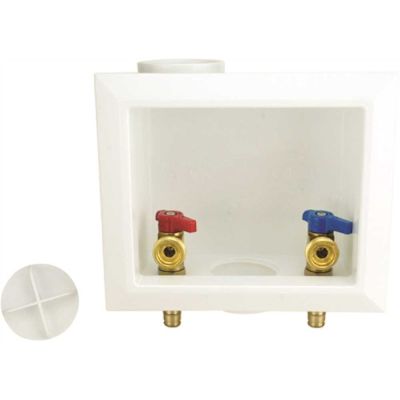

Apollo 1/2 in. Brass PEX-A Barb x 3/4 in. Male Hose Thread Washing Machine Outlet Box

Item # 305469334 | Apollo Part # EPXBOXWM | UPC Code 670750960659 | UNSPSC Code 40141600 | Catalog Page #458
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Related Items

Product Overview

The Apollo ExpansionPEX Washing Machine Outlet Box includes 1/2 in. Brass PEX-A barb washing machine valves and is simple to install. It provides flow control through an anti-stick and smooth operating quarter-turn handle. Ideal for installations of washing machines. Apollo ExpansionPEX barb fittings are a key component of the most economical potable water piping systems. Apollo ExpansionPEX barb connections must be secured into place Apollo ExpansionPEX sleeves or comparable expansion-type sleeve or ring (all sold separately). The Apollo ExpansionPEX system is a comprehensive piping system comprised of lead free brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex. A cold-expansion tool (sold separately) is required for installation.

  • Valves constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
  • Designed exclusively for use within type A PEX piping systems
  • 3/4 in. garden hose thread outlets
  • Box design allows for left or right stud mounting
  • Snap in place faceplate allows for up to 3/4 in. drywall
  • Ideal for installations of washing machines
  • Larger internal diameter of Apollo ExpansionPEX fittings results in a 25% greater flow rate within the system
  • Meets or exceeds ASTM F1960 standard
  • Meets UPC, IPC, and cUPC standard requirements
  • Must secured in place using Apollo ExpansionPEX sleeves or other PEX-A expansion sleeves/rings (all sold separately)
  • NSF listed
  • Barb x barb connection for PEX-A plumbing systems
  • Go/no-go gauges are never required
  • To ensure secure connections every time, fittings cannot be dry fit
  • Maximum working pressure of 200 psi and maximum temperature of 200 degree F
  • Item is not compatible with PEXb pipe, crimp-style (ASTM 1807) or pinch clamp (ASTM F2098) piping systems

Proposition 65 Information

Prop65 Warning Icon WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Further information available at www.p65warnings.ca.gov.

Specifications

Connection
Barb
Features
Corrosion Resistant, Lead Free, Quarter Turn
Indoor/Outdoor
Indoor
Manufacturer Warranty
5 Years: For exclusive use with ASTM F1960 fittings, fasteners and pipe.
Material
Brass
Pack Size
1
Product Depth (in.)
3.75
Product Height (in.)
10.13
Product Length (in.)
10.13
Product Weight (lb.)
1.6
Product Width (in.)
8.75
Valve Type
Washing Machine

Warranty

5 Years: For exclusive use with ASTM F1960 fittings, fasteners and pipe.
