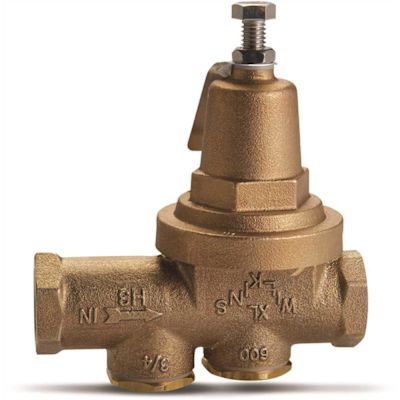

Wilkins 3/4 in. Bronze Pressure Reducing Valve

Item # 306301424 | Wilkins Part # 34-600XLLUCHSC | UPC Code 612052202303 | UNSPSC Code 40141600
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Ideal for use where Lead-Free valves are required. Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercial water systems requiring frequent cleaning because of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion. The balanced piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes.

  • 3/4 in. pressure reducing valve FNPT x FNPT less union assembly and tailpiece, chrome stem and plunger, sealed cage bell housing and stainless steel adjustment screw
  • Designed for high flow capacity in residential and commercial water applications
  • Integral strainer is easily cleaned with the removal of one cap
  • Low-lead law compliant
  • Maximum working water pressure 300 psi
  • Maximum working water temperature 140 degree F
  • Reduced pressure range (standard) 25 psi to 75 psi
  • Factory preset 50 psi

Proposition 65 Information

Prop65 Warning Icon WARNING: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Documentation

Specifications

Connection
FIP
Features
Lead Free
Indoor/Outdoor
Outdoor
Manufacturer Warranty
Y
Material
Bronze
Pack Size
1
Product Depth (in.)
2.8
Product Height (in.)
5.5
Product Length (in.)
5.5
Product Weight (lb.)
2.884
Product Width (in.)
2.8
Valve Type
Pressure Regulating

Warranty

Y
