Product Overview

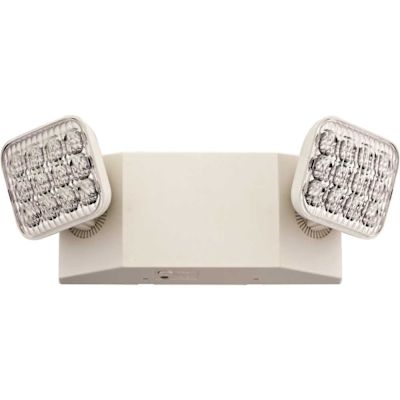

The EU2C by Lithonia Lighting is a dual lamp head LED emergency light. Certified Title 20 for small battery charger systems, the EU2C provides emergency lighting while saving energy. It is ideal for lighting the path-of-egress in applications such as stairways, hallways and other small spaces at lower mounting heights.

• APPLICATIONS: Ideal for small commercial indoor applications requiring match existing equipment for mounting heights up to 10'
• RATINGS: UL damp location listed standard at 50-104 degrees F (10-40C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
• VOLTAGE: Functions from 120-277 volts (50/60 Hz) with input wattage of 2 watts
• RATINGS: UL damp location listed standard at 50-104 degrees F, meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
• VOLTAGE: Functions between 120 and 277V with input wattage of 2 watts
• HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1 Watt LED lamps for emergency light
• DESIGN: Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components with LED lamps for easy installation
• BATTERY: Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free 3.6V nickel-cadmium battery provides 90 minutes of emergency power
• WARRANTY: 2-year limited warranty
• INSTALLATION: Wall or ceiling mount
• DIMENSIONS: Length: 10.125in x Height 3.75in x Width 3.75in
• LED emergency light with dual lamp heads
• Lights 3 ft. path of egress with 14 ft. coverage at 7.5 in. mount height
• Essential to meet Life Safety Codes

Specifications

Warranty

2 years limited warranty
