Broan-NuTone Flex DC Series 50 CFM - 110 CFM Bathroom Exhaust Fan, ENERGY STAR

Item # 311541889 | Broan-NuTone Part # AE50110DC | UPC Code 026715256976 | UNSPSC Code 39111543
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

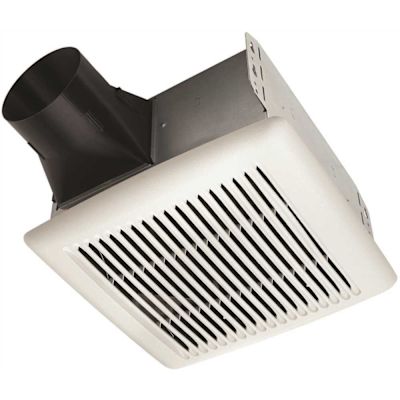

Broan AE50110DC Flex DC Series 80 CFM Exhaust Bath Fan, ENERGY STAR offers easy, room side installation, with no Attic Access required. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation 0.3-0.4-0.9 sones.

  • Can be installed in a wall if mounted 8 ft. or more above the floor
  • FlexFlow technology, select between 50, 80 or 110 CFM
  • Quiet operation at less than 0.3-0.4-0.9 sones
  • Retrofit installations can be done entirely from the room-side - no attic access required, this means a faster, easier installation, so you can move on to something else
  • Plug in, permanently lubricated, brushless DC motor - engineered for continuous operation
  • ENERGY STAR certified product
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am - 7:00 pm EST.

Specifications

Air Volume (CFM)
110, 50, 50-110 CFM, 80
Bath Product Type
Exhaust Fan
Certifications and Listings
cUL Listed, cULus Listed, Energy Star, HVI Certified, UL Listed
Color
White
Duct Compatible Sizes
4 in
Features
Adjustable Fan Speed, Roomside Installation
Grill Shape
Rectangle
Housing Length (in.)
9.25
Housing Material
Galvanized Steel
Housing Width (in.)
10
HVAC Amperage
0.3
HVAC Product Type
Fan & Limit Control
Included
Hardware
Manufacturer Warranty
Limited 3 Years
Pack Size
1
Product Height (in.)
5.75
Product Length (in.)
11.5
Product Weight (lb.)
7.29
Product Width (in.)
12
Voltage
120
Wattage (watts)
10.5

Warranty

Limited 3 Years
