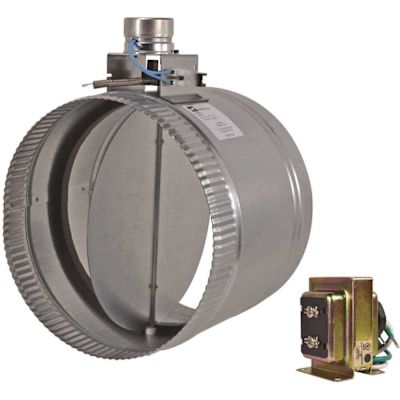

Suncourt 10 in. Motorized Adjustable Damper, Open
Item # 311744678
|
Suncourt
Part #
ZO210
|
UPC Code 066028022189
|
UNSPSC Code 40101504
|
Catalog Page #766
Product Overview
The ZoneMaster Motorized Adjustable Damper controls airflow in an HVAC system or fresh air intake. Available as power closed/spring return or power open/spring return. Adjustable close or open position range stops. Easy to wire, 2-wire installation. Save energy by controlling airflow.
- UL Listed 24-Volt 15VA stud mount transformer included
- 24 VAC, 1 RPM, 60 Hz, 6-Watt 2 wire synchronous hysteresis motor
- 20-Gauge blade closes against gasket for minimal leakage
- Freewheeling coupling for long life
- Male crimped and female non-crimped ends to connect to rigid or flexible round duct
- Customize airflow and temperature throughout your home
- Provides improved comfort and energy savings
Documentation
Owner's ManualSpecifications
Certifications and Listings
No Certifications or Listings
Duct Type
10" Round
Gauge
24
General Material
Galvanized Steel
HVAC Product Type
Dampers
Insulated
No
Pack Size
1
Product Depth (in.)
8
Product Height (in.)
10
Product Length (in.)
8
Product Width (in.)
10
