JACKEL 1/2HP Pre-Plumbed Sump Pump System

Item # 311801563 | JACKEL Part # JPACK22S-250V | UPC Code 850009975072 | UNSPSC Code 40151512 | Catalog Page #500
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

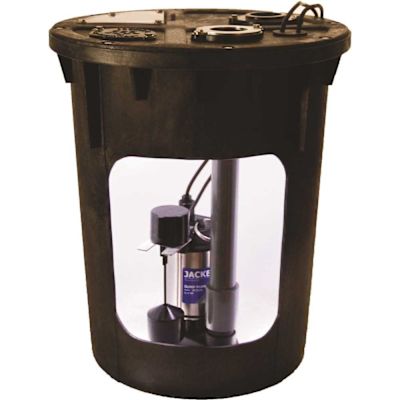

The JACKEL JPACK22S-250V 1/2HP Pre-Plumbed Sump Pump System is fully plumbed and ready to install. Included in the system is a sump pump, sump pump basin and basin cover, check valve and inlet hub. The system is designed to remove drainage and grey water. The interior plumbing uses heavy-duty schedule 80 PVC pipe and the discharge pipe quickly connects to the cover via specifically designed threaded socket flange. Every sump pump is 100% factory tested.

  • Comes JACKEL model JP250V 1/2HP sump pump
  • 1/2HP sump pump has a stainless steel motor housing, cast iron volute, SJE-rhombus vertical switch and piggyback plug
  • Polyethylene structural foam sump basin (18 in. x 24 in./22 Gal.)
  • Polyethylene structural foam sump basin cover (1.5 in. threaded discharge flange, 2 in. threaded vent flange, 2-hole cord grommet, clear view removable inspection plate and drain trap)
  • Comes with a 1.25 in. or 1.50 in. in-line sump pump check valve
  • Includes a molded 4 in. inlet hub
  • Interior plumbing includes schedule 80 PVC discharge pipe
  • Included sump drain trap serves as a floor drain

Specifications

Amperage
4.5
Certifications and Listings
UL Listed
Cord Length (ft.)
10
Manufacturer Warranty
Warranted to the original consumer purchaser to be free from defects in material and workmanship for a period of one year from the date of purchase.
Product Depth (in.)
15
Product Height (in.)
13.38
Product Weight (lb.)
22.50
Product Width (in.)
15

Warranty

Warranted to the original consumer purchaser to be free from defects in material and workmanship for a period of one year from the date of purchase.
