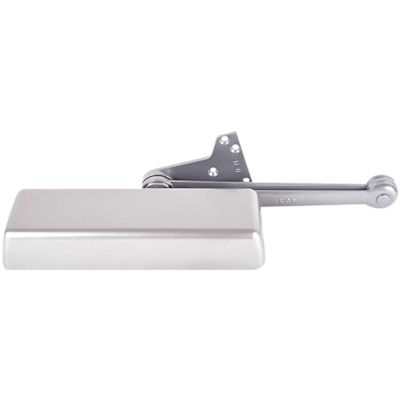

LCN 4110 Series Size 1 to 6 Sprayed Aluminum Grade 1 Surface Door Closer, Hold Open Extra Duty Arm, Right Hand

Item # 313257853 | LCN Part # 4111-HEDA RH AL | UPC Code 840067624272 | UNSPSC Code 30171514
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The 4110 Series is a heavy-duty closer that meet demands for high-traffic installations and is designed specifically for unique mounting applications. It is UL and cUL listed, meets ANSI/BHMA Grade 1 standards and boasts 30-year warranties. It features a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. It also features the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

  • Hold open extra duty arm
  • Size 1 to 6
  • Push side mount
  • Right hand
  • 180 degree swing
  • Full body cover
  • 30-year warranty
  • ANSI A156.4, grade 1, UL 10C, ADA
  • Self-reaming tapping screws

Specifications

Brand Compatibility
Various
Builders Hardware Product Type
Door Closer
Certifications and Listings
ANSI Certified
Color
Sprayed Aluminum
Commercial/Residential
Commercial
General Color Family
Metallics
General Material
Steel
Hardware Finish Family
Metal
Manufacturer Warranty
30 Year Warranty
Maximum Door Range (deg.)
110
Mounting
Top Mount
Product Depth (in.)
4.5
Product Height (in.)
16
Product Width (in.)
6

Warranty

30 Year Warranty
