Product Overview

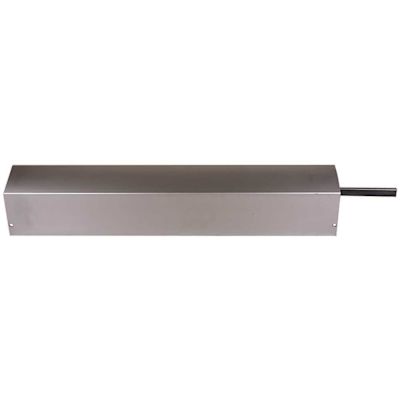

The Benchmark low-energy operators are electrically powered and are cost-effective for retrofitting an activated or manual door. The 9140 Series operators meet ANSI/BHMA A156.19 and ANSI A117.1 standards, are American Disabilities Act (ADA) compliant, UL-listed and feature a 2-year limited warranty. The operators feature a Push 'N Go activation, providing easy access for people with disabilities and the elderly. The Push 'N Go feature takes over when a pedestrian manually opens the door to 5 degree then holds the door fully open for 1-second to 30-seconds, depending on the time delay. Power Boost provides additional closing force in severe wind.

• Top jamb pull side mount power operator
• For use with interior doors up to 48 in.
• 120-Volt AC input at 1 Amp
• Onboard power supply
• 90 degree swing
• 27 in. x 4-1/2 in. unit dimension
• 200 lbs. maximum door weight
• ANSI A156.19, grade 1, UL325, ADA
• 1-year warranty

Specifications

Warranty

1 Year Warranty
