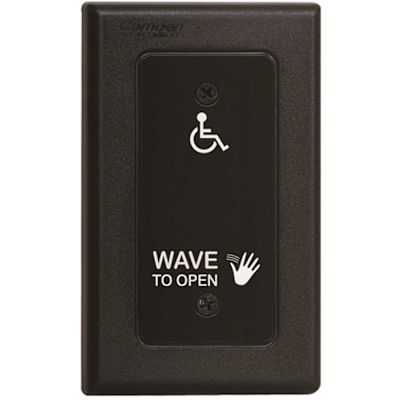

SureWave Polycarbonate Infrared Wave to Open Handicap Logo Touchplate
Product Overview
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications and then Built-in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired and wireless) and-years of trouble free service.
- Wave to open, handicap logo wave sense touch plate
- 2-3/4 in. x 4-1/2 in. unit dimension
- Includes RX, door contact input
- 12-Volt/24-Volt DC supply voltage
- 9 x 12-Volt active output, 40mA current draw
- Momentary/maintained, form C SPDT relay
- 3 Amp at 30-Volt DC contact rating
- Fail secure or fail safe
- RoHS compliant
- Limited warranty
Specifications
Builders Hardware Product Type
Push Plate
Finish
Polycarbonate
General Material
Plastic
Manufacturer Warranty
Limited Warranty
Product Depth (in.)
5.25
Product Height (in.)
2
Product Width (in.)
5.5
Warranty
Limited Warranty
