SHUT IT Bolt-On Single High-Temperature Sealed Bearing Hinge

Item # 314166559 | SHUT IT Part # CI3750 | UPC Code 736494011511 | UNSPSC Code 30152000
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

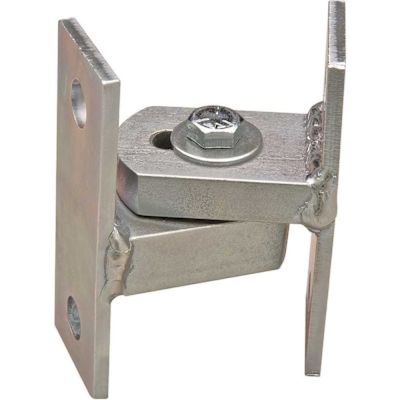

The SHUT IT Baby Bolt-On Hinge is perfect for pedestrian, driveway, playground gates and more weighing up to 300 lbs. (per pair). Convenience of bolt-on fastening for easy installation. Ideal gap between post and gate 3 in. to 3-1/2 in. Contains 1 sealed high-temp bearing, Zinc electroplated hinge with steel bracket and body. Stover lock nut, adjustable yoke, precision bushing, tightest tolerance in the industry. No maintenance, no need to add grease.

  • High-temperature sealed bearings - safe to powder coat with hinges installed on gate
  • No greasing, no maintenance, ever
  • Horizontal adjustability for perfect installations
  • Flat, bolt-on brackets for through bolting
  • Zinc plated
  • Load rating per gate: 600 lbs. (270 kg)
  • Maximum gate weight: 300 lbs. (140 kg)

Specifications

Manufacturer Warranty
Limited Lifetime on components, 5 years on bearings
Product Weight (lb.)
2

Warranty

Limited Lifetime on components, 5 years on bearings
