Klein Tools 400 Amp HVAC Digital Clamp Meter, AC Auto-Ranging

Item # 314263059 | Klein Tools Part # CL320 | UPC Code 092644692864 | UNSPSC Code 41113630
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter. It measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Measures temperature with a K-Type thermocouple probe
  • Auto-Range, Data Hold, and Max/Min value
  • Auto-power off after 10 minutes to conserve battery life

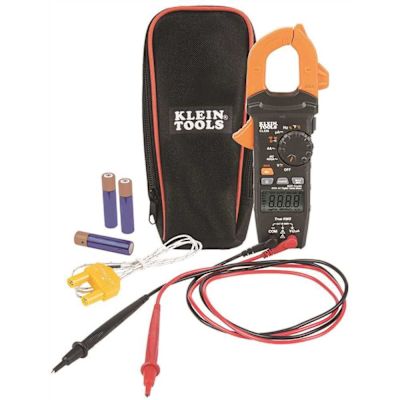

  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6 ft. (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Proposition 65 Information

Prop65 Warning Icon WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Specifications

Category Rating
III
Certifications and Listings
CE Certified
Digital / Analog
Digital
Features
Backlit, Data Logging, Interchangeable Leads, Low Battery Indicator
Included
Batteries, Case, Test Leads
Manufacturer Warranty
Please refer to the attached warranty document in the Product Overview section above under Info & Guides
Number of Functions
12
Product Depth (in.)
8.4500
Product Height (in.)
1.5060
Product Weight (lb.)
0.6150
Product Width (in.)
3.5120

Warranty

Please refer to the attached warranty document in the Product Overview section above under Info & Guides
