Product Overview

Hex head machine screws have 6 flat sides and a flat bearing surface. Machine screws are used with nuts or screwed directly into a tapped hole to fasten components together. Length of hex head machine screws are measured from underneath the head to the point of the screw.

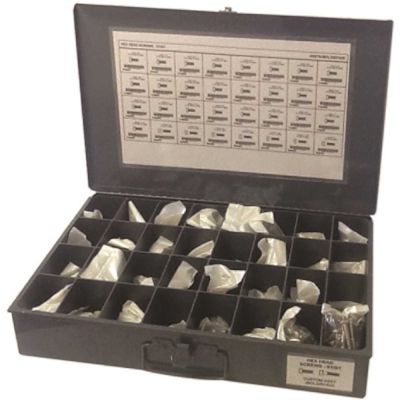

• Kit contains the following 800-pieces of 18-8 stainless steel external hex head machine screws (25-pieces of each): 4-40 x 3/8, 4-40 x 1/2, 4-40 x 5/8, 4-40 x 3/4, 6-32 x 3/8, 6-32 x 1/2, 6-32 x 5/8, 6-32 x 3/4, 8-32 x 3/8, 8-32 x 1/2, 8-32 x 5/8, 8-32 x 3/4, 8-32 x 1, 10-32 x 3/8, 10-32 x 1/2, 10-32 x 5/8, 10-32 x 3/4, 10-32 x 1, 10-32 x 1 1/4, 10-24 x 3/8, 10-24 x 1/2, 10-24 x 5/8, 10-24 x 3/4, 10-24 x 1, 10-24 x 1 1/4, 1/4-20 x 1/2, 1/4-20 x 5/8, 1/4-20 x 3/4, 1/4-20 x 1, 1/4-20 x 1 1/4, 1/4-20 x 1 1/2, 1/4-20 x 2
• Use appropriate hex driver size for installation as follows: #4 diameter use 3/16 in. #6 diameter use 1/4 in. #8 diameter use 1/4 in. #10 diameter use 5/16 in., 1/4 in. Dia use 3/8 in.
• Material: 18-8 stainless steel provides long-lasting corrosion resistance
• 18 in. W x 12 in. D metal tray for easy storage

Specifications

Warranty

None
