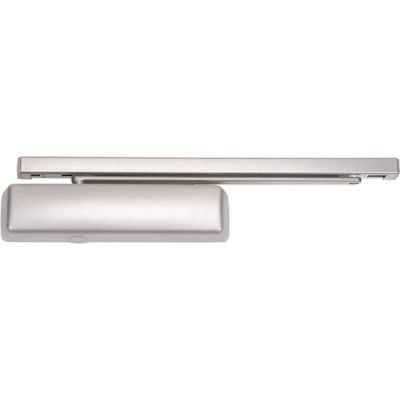

Norton 2800ST Series Grade 1 Size 1 to Size 6 Sprayed Aluminum Slide Track Arm Cam Action Surface Door Closer

Item # 316650096 | Norton Part # 2800ST 689 | UPC Code 840067681367 | UNSPSC Code 31162800
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The cam action design is ideal as it provides greater efficiency than a rack and pinion door closer for slide track applications. Cam action closers provide a lower opening resistance while delivering optimum closing force and control. The door closer's wide range of adjustable closing power permits use in the most demanding situations. The efficiency and flat power curve comply with the opening force requirements of the Americans with Disabilities Act (ADA). These door closers come standard with adjustable sweep speed and latch speed, closing control and adjustable backcheck cushioning in the opening cycle. The unobtrusive design is a good choice for architects and designers.

  • Grade 1 cam action surface door closer
  • Slide track arm
  • Size 1 to size 6
  • Pull side mount
  • Non-handed
  • 110 degree swing
  • Plastic full body cover
  • Aluminum body
  • 1-1/2 in. piston diameter
  • Includes self drilling screws
  • ANSI A117.1, UL Listed
  • 10-year warranty

Specifications

Brand Compatibility
Universal
Builders Hardware Product Type
Door Closer
Certifications and Listings
ANSI Certified
Color
Sprayed Aluminum
Commercial/Residential
Commercial
General Color Family
Grays
General Material
Brass
Hardware Finish Family
Silver
Manufacturer Warranty
10 Year Warranty
Maximum Door Range (deg.)
110
Mounting
Hinge Side
Product Depth (in.)
24.75
Product Height (in.)
6
Product Width (in.)
7

Warranty

10 Year Warranty
