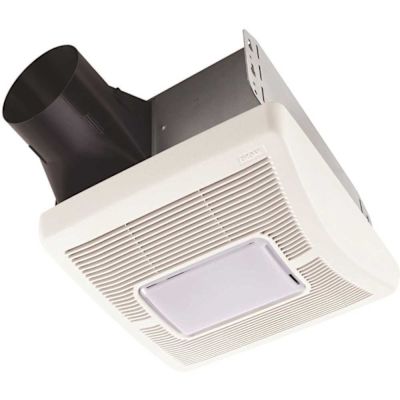

Broan-NuTone InVent Series 70 CFM Ceiling Installation Bathroom Exhaust Fan with Light

Item # 3553098 | Broan-NuTone Part # A70L | UPC Code 026715236497 | UNSPSC Code 39111543 | Catalog Page #779
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Broan InVent Series A70L White 70 CFM Exhaust Bath Fan with Light offers easy, room side installation, with No Attic Access Required. Ceiling mounted ventilation fan features foldable mounting ears and EZDuct connector for easy installation. New grille designs are at home in any decor. This fan operates at 70 CFM and 2.0 sones.

  • 70 CFM, sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 2.0 sones for quiet performance , enough sound to know your fan is on
  • 100-Watt maximum incandescent A19 type bulb or energy efficient equivalent bulb with maximum overall length of 4.4 in. or less (bulb not included)
  • TrueSeal Damper technology reduces air leakage up to 50%
  • EzDuct connector can be installed from the room side, with no attic access required
  • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit
  • Powerful enough for rooms up to 65 sq. ft
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Comparable to NuTone Model AN70L
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am - 7:00 pm EST.

Specifications

Air Volume (CFM)
70, 70 CFM
Bath Product Type
Exhaust Fan
Certifications and Listings
HVI Certified, UL Listed
Color
White
Duct Compatible Sizes
4 in
Features
Light, Roomside Installation
Grill Shape
Rectangle
Heater Included
NO
Housing Length (in.)
9.25
Housing Material
Galvanized Steel
Housing Width (in.)
10
HVAC Amperage
1.2
HVAC Product Type
Exhaust Fans & Parts
Included
No Additional Items Included
Kit
NO
Light Bulb Base Code
E26
Light Bulb Type Included
No Bulbs Included
Lights Included
YES
Manufacturer Warranty
Limited 1 year
Maximum CFM
70 CFM
Mounting Length
9.25 in.
Mounting Width
10 in.
Number of Bulbs Required
1
Pack Size
1
Product Height (in.)
8.5
Product Length (in.)
12.125
Product Weight (lb.)
8.55
Product Width (in.)
15.75
Required Bulb Type
Incandescent
Shape
Square
Voltage
120
Wattage (watts)
100
Certifications
Made in the USA UL

Warranty

Limited 1 year
