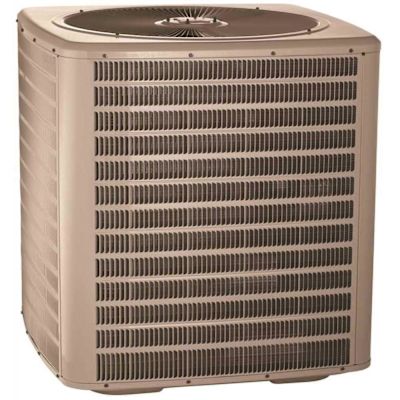

GMC 2 Ton R-410A 14 SEER HEAT PUMP

Item # 3559834 | GMC Part # VSZ140241 | UPC Code 663051528390 | UNSPSC Code 40101806 | Catalog Page #633
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

14 SEER, Heat Pump, 2 Ton.;Energy-efficient compressor.;Single speed PSC.;Factory-installed filter drier.;Factory-installed suction line accumulator.;Factory-installed compressor crankcase heater.;Factory-installed high-capacity muffler.

  • Energy-efficient compressor
  • Single speed PSC
  • Factory-installed filter drier
  • Factory-installed suction line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High and low pressure switches
  • AHRI certified; ETL listed
  • Heavy-gauge galvanized-steel cabinet
  • Top and side maintenance access
  • Service ports and controls are accessible while unit is operating
  • 24,000 BTU
  • 14 SEER
  • Liquid line size: 3/8 in.
  • Suction line size: 3/4 in.
  • Voltage: 208/230-Volt
  • Minimum circuit amps: 14.7
  • Maximum overcurrent protection: 25 amps

Specifications

Appliance Category
A/Cs and Fans
BTU Cooling Rating
23200
Certifications and Listings
ETL Listed
Color
Gray
Color/Finish Family
Gray
Coverage Area (sq. ft.)
1
Energy Efficiency Ratio (EER)
11.5
HVAC Product Type
Heat Pump
Manufacturer Warranty
Must be professionally installed and adhere to codes
Product Depth (in.)
29
Product Height (in.)
34.5
Product Width (in.)
29
Refrigerant Compatibility
R-410A
Voltage
230/208

Warranty

Must be professionally installed and adhere to codes
