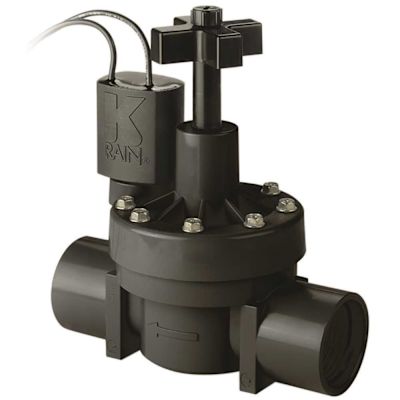

K-Rain Pro Series 150 1 in. In-Line Electric Valve
Product Overview
The Pro Series 150 Valve is ideal for residential and light commercial applications. This 1 in. model features a removable external bleed screw and metering pin to simplify cleaning and maintenance. With the External Bleed Screw, manual operation during start up is easy.
- Heavy duty, corrosion and UV resistant PVC construction - increases the life of the valve
- Flow range: 0.25 GPM to 35 GPM
- Manual external bleed screw - provides for manual operation in system start up
- Manual internal bleed through solenoid - provides for manual operation without discharging water outside the valve
- Captured plunger - allows for the solenoid to be removed without losing the internal plunger
- Captured plunger - remove the solenoid without losing the internal plunger
- Self cleaning screen - screen is in turbulent flow of water for self-cleaning action during operation
- External bleed screw with removable metering pin allows for easy cleaning of the metering pin without disassembling the valve
- Removable Inlet Cap - Allows for easy conversion from globe to angle-style valve
- 5-year limited warranty
Specifications
Connection
FIP x Pipe x Thread
Inlet Size (in.)
1
Irrigation System Component
Valve
Manufacturer Warranty
Five Year Limited Warranty
Material
Plastic
Maximum Pressure (PSI)
150
Number of Outlets
1
Pack Size
1
Package Quantity
1
Product Height (in.)
5.25
Product Length (in.)
5
Product Weight (lb.)
0.92
Product Width (in.)
3.125
Thread Type
Female
Warranty
Five Year Limited Warranty
