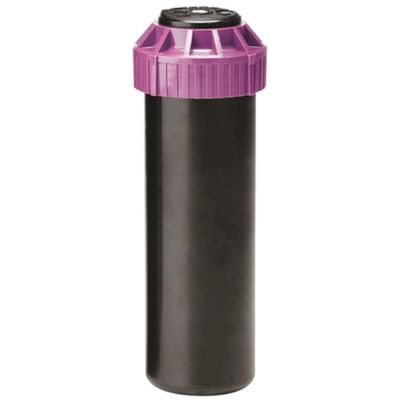

K-Rain MiniPro 4 in. Rotary Sprinkler for Reclaimed Water

Item # 3564909 | K-Rain Part # 13003-RCW | UPC Code 671923100551 | UNSPSC Code 21102500
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The name says it all: Pro performance and pro features on a smaller scale. That's why MiniPro is the best choice for small lawn and landscape areas. With a ½" inlet, the MiniPro is a gear-driven, rotary sprinkler that can replace all standard mini rotors and fixed zone pop-up sprays. The MiniPro has an arc adjustment of 40° to 360°. Adjusting that pattern is easy because of the top arc set degree indications and the spray direction arrow located on the sprinkler head. Simply insert a flat blade screwdriver into the arc adjustment slot and adjust as desired. The sprinkler can be adjusted wet or dry -- before installation and after installation with the water on or off. A purple collar is easily identified for reclaimed water use.

  • Specifically for use on reclaimed water systems (RCW)
  • Revolutionary Patented Top Arc Set - Simplified arc set allows for wet or dry adjustment in seconds
  • 1/2" (1,3 cm) Inlet - Replaces all standard mini rotors and pop-up sprays
  • Adjustable to 360° - Provides a full range of adjustment from 40° to 360°
  • Patented Top Arc Set Degree Markings - Clearly indicates the current watering pattern and simplifies arc set adjustment
  • Time Proven Patented Reversing Mechanism - Assures continuous reverse and return...over a 35-year history
  • Ratcheting Riser - Allows for easy adjustment of your left starting position with a simple turn of the riser
  • Rubber Cover - Seals out dirt and increases product durability
  • Pre-installed #1.5 nozzle
  • Nozzle Trajectory 25°

Specifications

Coverage Pattern
40° - 360° Reversing Full and Part-Circle
Features
Adjustable, Riser, Rotating
General Color Family
Blacks
Head Material
Plastic
Inlet
1/2 in.
Irrigation System Component
Sprinkler
Manufacturer Warranty
2 year
Material
Plastic
Maximum Spray Distance
30 ft.
Maximum Spray Distance (ft.)
33
Mounting
In-Ground Install
Pack Size
1
Package Quantity
1
Pop Up Height (in.)
4 Inch
Pop-Up Height
4 in.
Product Depth (in.)
6
Product Diameter (in.)
2
Product Height (in.)
6
Product Width (in.)
2
Thread Type
Female NPT

Warranty

2 year
