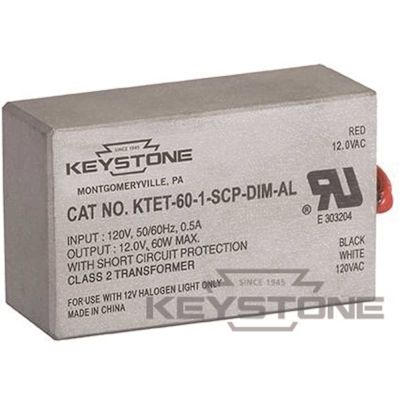

Keystone Technologies 120-Volt 60-Watt Low Voltage Halogen Ballast
Item # 3578685
|
Keystone Technologies
Part #
KTET-60-1-SCP-DIM-AL
|
UPC Code 890949004258
|
UNSPSC Code 39101902
Product Overview
Performance: Minimum starting temperature: 0 degree F, -18 degree C maximum case temperature: 167 degree F, 75 degree C transient protection meets ANSI/IEEE C62.41 Cat. A with short circuit protection class 2 transformer dimmable 3-year warranty electrical specifications: transformer type: electronic lamp Connection: parallel input voltage: 120Vac +/- 10% Input Frequency: 50/60Hz Lamp Type: 12-Volt halogen lamps Input Watts: 60 Input Current (Amps): 0.51 Power Factor: 0.98 Output Voltage: 11.8 Approvals: RU, cRU Lead Length: White, Black: 8 in., Red: 6 in., Case material: Aluminum dimensions: length (L): 2.28 in., Width (W): 1.30 in., height (H): 0.79 in.
- Minimum starting temperature: 0 degree F, -18 degree C
- Maximum case temperature: 167 degree F, 75 degree C
- Class 2 transformer
- Dimmable
Specifications
Certifications and Listings
UL Recognized
Dimmable
No
Input Volts
120
Manufacturer Warranty
3
Minimum Temperature for Use (F)
0
Number in Pack
1
Number of Lamps
1
Product Height (in.)
.79
Product Length (in.)
2.28
Product Weight (lb.)
.182
Product Width (in.)
1.3
Starting Method
Instant Start
Warranty
3
