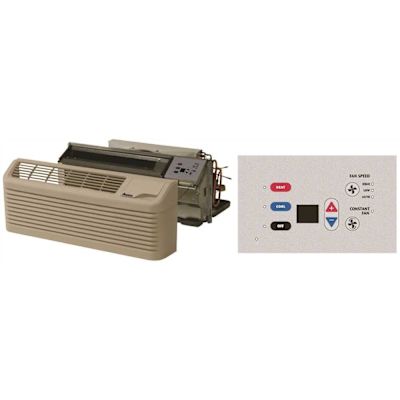

AMANA® DIGISMART™ STANDARD HEAT PUMP, 12,000 BTU, 208 VOLTS
Product Overview
- Cooling capacity 11700/11500
- Heating capacity 11000/10800
- EER 10.5/10.8
- Cop 3.1/3.1
- Voltage 230/208
- Amps 5.7/5.7
- Moisture removal (Pt/Hr) 3.6
- CFM (high/low) 290
- Weight 112
- R410A refrigerant
- DigiSmart control board technologies to maximize your energy saving capability
- New Tangential indoor fan for Ultra-quiet fan operation
- New pullout filters for easy cleaning
- New 7-button touch pad design for best and easiest guest operation ever
- New easy to clean condenser coil with removable shroud
- Room freeze protection
- Fits industry standard 42"W x 16"H sleeve
- 3.5KW electric heat
- 20 Amp (6-20P) plug
- Power plug included with unit
- The in-room heat pump unit must be equipped with a DigiSmart gateway antenna (DT01G) in order for the remote thermostat (DS01E) to work
- The Gateway antenna and remote thermostat are sold separately from the heat pump
Documentation
Assembly InstructionsSpecifications
Color
White
Cooling Capacity
11,500 BTU
Depth
21.5 in.
Energy Star
NO
Heating BTU
12,000
Height
16.06 in.
Operation Type
Heat Pump
Refrigerant Compatibility
R-410A
Voltage
230/208 Volt
Width
42 in.
Warranty
1-YEAR WARRANTY PARTS AND LABOR; 2-5-YEAR WARRANTY SYSTEM PARTS, FUNCTIONAL PARTS, AND LABOR
