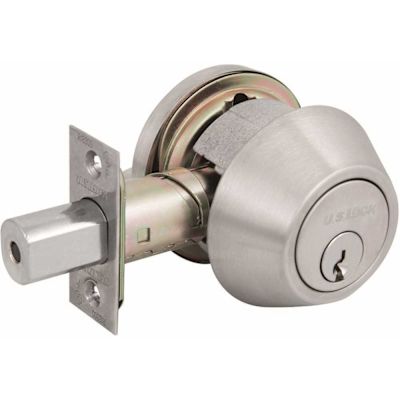

US Lock 1600 Series GR2 US32D Single Cylinder Deadbolt SC1 Adjustable Backset
Item # 3585031
|
US Lock
Part #
D761-UXU1BJQ
|
UPC Code 050134991187
|
UNSPSC Code 46171500
|
Catalog Page #1493
Product Overview
Certified to ANSI/BHMA Standard A156.36. When used as a replacement lock only a screwdriver is needed. Reinforced mounting plate with 4 mounting screws prevents loosening and provides great security. A full and fixed anti-pry shield preventing theft prying. Saw resistance designed deadbolt with full 1 throw forged steel bolt contains roller pins with springs.
- Finish: US32D - brushed stainless
- Backset: adjustable 2-3/8 in. or 2-3/4 in. standard
- Keyway: SC1
- Door thickness: 1-3/8 in. to 1-3/4 in. (35 mm to 45 mm)
- UL fire rating: 3-hour
- ANSI grade-2
- Faceplate: 1 in. x 2-1/4 in.
- Limited lifetime warranty
Proposition 65 Information
WARNING: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Documentation
Assembly InstructionsSpecifications
Assembled Depth (in.)
3.08
Assembled Height (in.)
2.55
Assembled Width (in.)
2.55
Backset size (in.)
Adjustable
Commercial/Residential
Commercial
Deadbolt strike width (in.)
1
Door Handing
Universal
Door Locks & Knobs Product Type
Deadbolts
Finish
Stainless Steel
General Material
Metal
Included
Drilling Template, Installation Instructions, Mounting Hardware
Interior/Exterior
Exterior
Manufacturer Warranty
Limited Lifetime Warranty
Product Weight (lb.)
1.42
Required door thickness (in.)
1-3/8 in to 1-3/4 in
Security/ANSI Grade
ANSI Grade 2 (Better)
Warranty
Limited Lifetime Warranty
