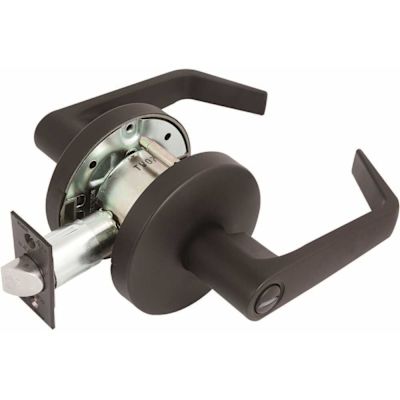

US Lock 2050 Series GR2 2-3/4 in. Backset US10B Privacy Bed/Bath Door Lever
Item # 3585095
|
US Lock
Part #
Y3X61CZL78BJQ
|
UPC Code 050134991958
|
UNSPSC Code 46171500
|
Catalog Page #1533
Product Overview
Certified to ANSI/BHMA Standard A156.2. Recommended for commercial applications for barrier-free access. When used as a replacement lock only a screwdriver is needed. Non-handed levers meet California Fire Code requirements for maximum 1/2 in. door-to-handle spacing when installed on 1-3/4 in. T doors. Independent lever return springs prevent lever sag.
- Finish: US10B oil-rubbed bronze
- Function: privacy
- Feature: non-clutched
- Handle shape: lever
- Backset: 2-3/4 in. standard
- Latch faceplate: 1-1/8 in. x 2-1/4 in.
- ASA strike
- Door thickness: 1-3/8 in. to 1-3/4 in. (35 mm to 45 mm)
- Removable through-bolts
- UL fire rating: 3-hours
- ANSI grade-2
- Limited lifetime warranty
Proposition 65 Information
WARNING: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Documentation
Assembly InstructionsSpecifications
Assembled Depth (in.)
6.94
Assembled Height (in.)
3.35
Assembled Width (in.)
6.30
Commercial/Residential
Commercial
Door Handing
Universal
Door Locks & Knobs Product Type
Privacy Levers
Finish
US10B - Oil-Rubbed Bronze
General Material
Zinc
Included
Drilling Template, Hardware, Installation Instructions
Manufacturer Warranty
Limited Lifetime Warranty
Pack Size
Single Pack
Product Weight (lb.)
3.02
Security/ANSI Grade
ANSI Grade 2 (Better)
Strike width (in.)
1.75
Warranty
Limited Lifetime Warranty
