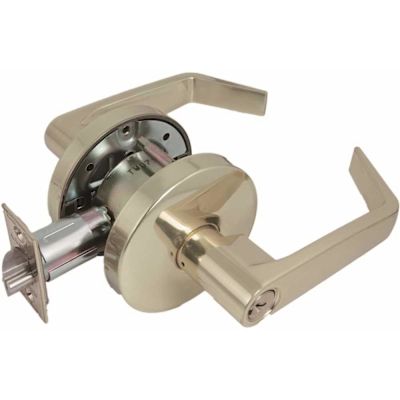

US Lock 2050C Series GR2 2-3/4 in. Backset US3 Storeroom Lever SC1 Clutched
Product Overview
Certified to ANSI/BHMA Standard A156.2. Recommended for commercial applications for barrier-free access. Features a square latch with a fixed 2-3/8 in. backset. When used as a replacement lock only a screwdriver is needed to make installation a snap. Non-handed levers meet California Fire Code requirements for maximum 1/2 in. door-to-handle spacing when installed on 1/2 in. throw stainless 1-3/4 in. T doors. Independent lever return springs prevent lever sag.
- Finish: US3 bright brass
- Entrance: storeroom
- Feature: clutched
- Handle shape: lever
- Backset: 2-3/4 in. standard
- Latch faceplate: 1-1/8 in. x 2-1/4 in.
- ASA strike
- Keyway: SC1
- Door thickness: 1-3/8 in. to 1-3/4 in. (35 mm to 45 mm)
- Removable through-bolts
- UL fire rating: 3-hours
- ANSI grade-2
- Limited lifetime warranty
Proposition 65 Information
WARNING: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Documentation
Assembly InstructionsSpecifications
Assembled Depth (in.)
6.56
Assembled Height (in.)
3.35
Assembled Width (in.)
6.30
Commercial/Residential
Commercial
Door Handing
Universal
Door Locks & Knobs Product Type
Storeroom Levers
Finish
US3 Bright Brass
General Material
Metal
Included
Drilling Template, Hardware, Installation Instructions, Mounting Hardware
Manufacturer Warranty
Limited Lifetime Warranty
Pack Size
Single Pack
Product Weight (lb.)
3.2
Security/ANSI Grade
ANSI Grade 2 (Better)
Warranty
Limited Lifetime Warranty
