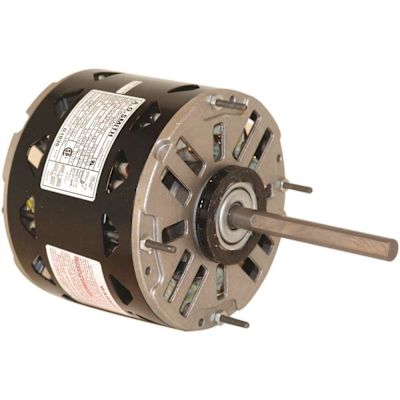

Century DL1076 STANDARD EFFICIENCY INDOOR BLOWER MOTOR, 5-5/8 IN., 115 VOLTS, 10.3 MAX AMPS, 3/4 HP, 1,075 RPM
Item # 442384
|
Century
Part #
DL1076
|
UPC Code 076335056128
|
UNSPSC Code 40101601
|
Catalog Page #720
Product Overview
Century Standard Efficiency Indoor Blower Motor - Fan Coil - Dual Wheel Blower
(Capacitor Not Included)
- 3/4 HP
- 115 Volts
- 1075 RPM
- 3-Speed
- 8.9 Rated Amps
- 10.3 Max Amps
- Reversible rotation
- Sleeve Bearings
- Auto Protector
- Class B Insulation
- 50 degree C Ambient
- 2-1/4" Rings with 2-1/2" Adapters included
- 4" shaft extension
- 26" leads
- 60 Hzonly
- 48 Frame
Documentation
Product BrochureSpecifications
Color
Gray
Frame
48
General Material
Steel
Horsepower
3/4
HVAC Amperage
9.5
HVAC Product Type
Evaporative Cooler
Motor Enclosure Type
Open Drip Proof (ODP)
Motor Mount Type
Ring
Nameplate RPM
1075/925/772
Part/Accessory Type
Motor
Phase
1
Product Depth (in.)
5.63
Product Height (in.)
10.11
Product Weight (lb.)
17.64
Product Width (in.)
5.63
Shaft Length (in.)
4.5
Voltage
115
