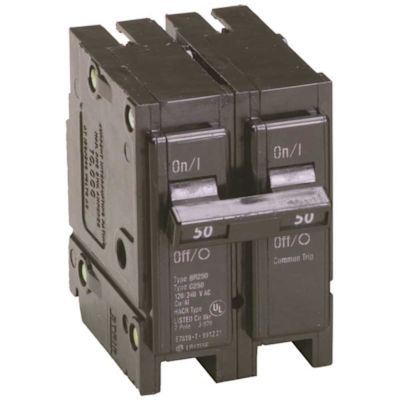

Eaton BR 50 Amp 120/240 Volts 2-Pole Circuit Breaker
Item # 457037
|
Eaton
Part #
BR250
|
UPC Code 786676363051
|
UNSPSC Code 39121601
|
Catalog Page #1079
Product Overview
The Eaton Cutler-Hammer 50 Amp 2 in. Double-Pole Type BR Replacement Circuit Breaker trips to the center position and has a maximum load of 240-Volt. The UL-listed circuit breaker is compatible with Westinghouse, Challenger and Bryant load centers. The breaker is designed for overload and short-circuit protection of your home electrical system.
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage rating: 50 Amp
- Double pole 2 in. wide breaker
- Trips to center position - must turn off then turn back on
- For use in type BR load centers
- Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
- Interrupt rating - 10 kAIC
- Voltage rating is 120/240-Volt
- Wire size - #14-4 AWG Cu/Al at 60 degree C or 75 degree C
- Gauge/number of wires with ground - 6/3
Specifications
Breaker Type
Main Breaker
Certifications and Listings
ANSI Certified, CSA Certified, UL Listed
Manufacturer Warranty
5 Year Per the Warranty Statement
Maximum Amperage
50, 50 amp
Number of Poles
Double
Pack Size
1, 1 Pack
Product Depth (in.)
3
Product Height (in.)
3
Product Weight (lb.)
0.55
Product Width (in.)
1.96
Certifications
UL
Warranty
5 Year Per the Warranty Statement
