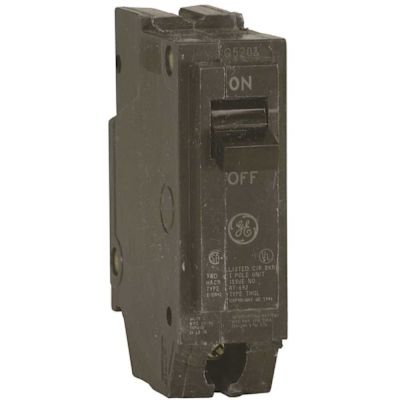

GE Q-Line 20 Amp 1 in. Single-Pole Circuit Breaker
Item # 457108
|
GE
Part #
THQL1120
|
UPC Code 783164012866
|
UNSPSC Code 39121601
|
Catalog Page #1083
Product Overview
The GE Q-line 20 Amp 1 in. Single-Pole Circuit Breaker has a tin-plated copper stab to create a reliable, permanent and corrosion-resistant connection. The unit has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The breaker case is made of heat-resistant thermoset for stability and structural integrity.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection
- Box type terminals
- Calibration screw is cemented to prevent shifting
- Breaker case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
- Meets NEMA standards
- ANSI certified and CSA and UL listed
Documentation
Product BrochureSpecifications
Breaker Type
Standard
Certifications and Listings
UL Listed
Manufacturer Warranty
One year warranty from first use
Maximum Amperage
20, 20 amp
Number of Poles
Single
Number of Spaces
1
Pack Size
1, 1 Pack
Product Depth (in.)
1
Product Height (in.)
3
Product Weight (lb.)
.305
Product Width (in.)
3.375
Voltage
120, 120 volts
Certifications
UL
Warranty
One year warranty from first use
