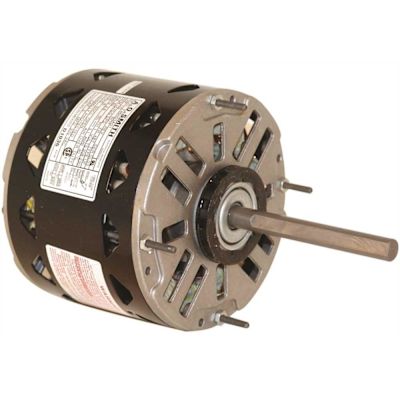

Century DL1026 STANDARD EFFICIENCY INDOOR BLOWER MOTOR, 5-5/8 IN., 115 VOLTS, 4.6 MAX AMPS, 1/4 HP, 1,075 RPM
Item # 464726
|
Century
Part #
DL1026
|
UPC Code 076335055978
|
UNSPSC Code 40101601
|
Catalog Page #720
Product Overview
Century Standard Efficiency Indoor Blower Motor - Fan Coil - Dual Wheel Blower
(Capacitor Not Included)
- 1/4 HP
- 115 Volts
- 1075 RPM
- 3-Speed
- 3.5 Rated Amps
- 4.6 Max Amps
- Sleeve Bearings
- Auto Protector
- Class B Insulation
- Lead Reversible
- 40 degree C Ambient
- 2-1/4" Rings with 2-1/2" Adapters included
- 4" shaft extension
- 26" leads
- 60 Hzonly
- 48 Frame
Documentation
Specifications
Color
Gray
Frame
48
General Material
Metal
Horsepower
1/4
HVAC Amperage
4.6
HVAC Product Type
Evaporative Cooler
Manufacturer Warranty
1 Year
Motor Enclosure Type
Open Drip Proof (ODP)
Motor Mount Type
Ring
Nameplate RPM
1075/925/772
Part/Accessory Type
Motor
Phase
1
Product Depth (in.)
5.63
Product Height (in.)
13.5
Product Weight (lb.)
18
Product Width (in.)
5.63
Shaft Length (in.)
4
Voltage
115
Warranty
1 Year
