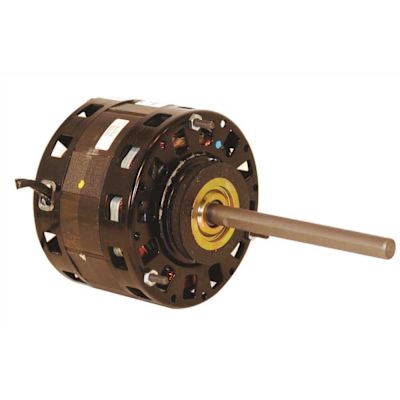

Century BL6414 SINGLE SHAFT FAN / BLOWER MOTOR , 5 IN., 115 VOLTS, 6.5-4.0-3.0 AMPS, 1/5-1/5-1/10 HP, 1,050 RPM

Item # 464763 | Century Part # BL6414 | UPC Code 076335100623 | UNSPSC Code 40101601 | Catalog Page #718
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Century Single Shaft Fan/Blower Motor - Furnace Blowers - Attic Ventilators - Air Handlers - Fan Coils

  • 1/5 - 1/8 - 1/10 HP
  • 115 Volts
  • 1050 RPM
  • 3-Speed
  • 6.5 - 4.0 - 3.0 Amps
  • Sleeve Bearings
  • 5" Diameter
  • 1/2" Diameter Flatted Shaft
  • 42 Frame
  • 60 Hz
  • 40 degree C Ambient

Documentation

Specifications

Color
Black
Frame
42
Horsepower
1/5
HVAC Amperage
6.5
HVAC Product Type
Evaporative Cooler
Motor Enclosure Type
Open Drip Proof (ODP)
Motor Mount Type
Ring
Nameplate RPM
1075
Part/Accessory Type
Motor
Phase
1
Product Depth (in.)
5
Product Height (in.)
7.1
Product Weight (lb.)
11
Product Width (in.)
5
Shaft Length (in.)
5
Voltage
115
