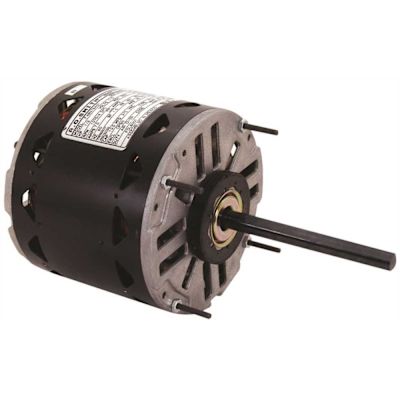

Century FD6000 DIRECT DRIVE BLOWER MOTOR, 5-5/8 IN., 208-230 VOLTS, 3.9 - 1.3 AMPS, 1/2 - 1/6 HP, 1,075 RPM

Century FD6000 DIRECT DRIVE BLOWER MOTOR, 5-5/8 IN., 208-230 VOLTS, 3.9 - 1.3 AMPS, 1/2 - 1/6 HP, 1,075 RPM

Item # 464765 | Century Part # FD6000 | UPC Code 786674054746 | UNSPSC Code 40101601 | Catalog Page #720

Log in to see your price.



Century FD6000 DIRECT DRIVE BLOWER MOTOR, 5-5/8 IN., 208-230 VOLTS, 3.9 - 1.3 AMPS, 1/2 - 1/6 HP, 1,075 RPM

Item # 464765 | Century Part # FD6000 | UPC Code 786674054746 | UNSPSC Code 40101601 | Catalog Page #720
Century FD6000 DIRECT DRIVE BLOWER MOTOR, 5-5/8 IN., 208-230 VOLTS, 3.9 - 1.3 AMPS, 1/2 - 1/6 HP, 1,075 RPM
    Open Expanded View
    Qty:

    Log in for product availability.

    Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print
    Product Overview Documentation Specifications More Related Terms

    Product Overview

    Century Multi-horsepower Direct Drive Fan & Blower Motor

    • 1/2 - 1/6 HP
    • 208 - 230 Volts
    • 1075 RPM
    • 3.9 - 1.3 Amps
    • 4-Speed
    • Sleeve Bearings
    • 5-5/8" Diameter
    • 40 degree C Ambient
    • Open Drip proof
    • 36" Color Coded Lead
    • 1/2" x 5" Shaft Length
    • 4.86" Shell Dimensions
    • 48 Frame
    • Single Phase
    • 60 HzOperation
    • Permanent Split Capacitor
    • Reversible Rotation
    • Automatic overload
    • Totally Enclosed

    Documentation

    Product Brochure

    Specifications

    Amperage
    3.9
    Color
    Gray
    Frame
    48
    General Material
    Aluminum
    HVAC Amperage
    1.3, 3.9
    Motor Enclosure Type
    Open Drip Proof (ODP)
    Motor Mount Type
    Ring
    Nameplate RPM
    1075
    Part/Accessory Type
    Motor
    Phase
    1
    Product Depth (in.)
    5.63
    Product Height (in.)
    4.88
    Product Weight (lb.)
    16
    Product Width (in.)
    5.63
    Shaft Length (in.)
    5
    Voltage
    230, 230/208
