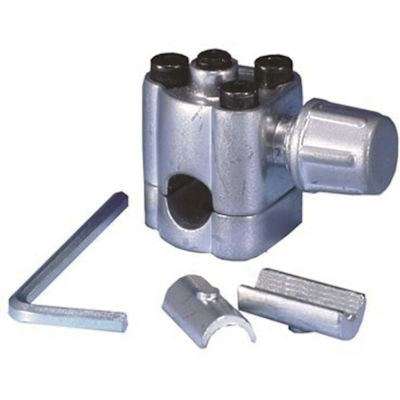

SUPCO 1/4 in., 5/16 in. and 3/8 in. OD Bullet Piercing Tap Valve
Item # 468406
|
SUPCO
Part #
BPV31
|
UPC Code 687152010769
|
UNSPSC Code 40101600
|
Catalog Page #703
Product Overview
The only valve with a permanent, patented gasket to provide 50 times more sealing area then standard O-ring type valves. Safe for use on the Low Side of R410 systems. A sealing force of over 180 in. lbs., torque tested with 450 lbs. pressure tested at 250F. Patented valve gasket provides 50 times more sealing area than competitive O-ring types.
- Corrosion resistant
- Piercing needle is engineered for concentricity and hardness to insure perfect seating every time
- 500 psi maximum pressure
- Non-positional mounting, no adapter valve required
- Requires only 2 in. clearance for installation and operation
- Hex key wrench included
Specifications
Brand/Model Compatibility
Universal
HVAC Product Type
HVAC Part
Manufacturer Warranty
1 Year
Product Depth (in.)
1.25
Product Height (in.)
1.25
Product Weight (lb.)
.35
Product Width (in.)
2
Size
0.25 in., 0.3125 in., and 0.375 in.
Specialty HVAC Parts Type
Piercing Valve
Warranty
1 Year
