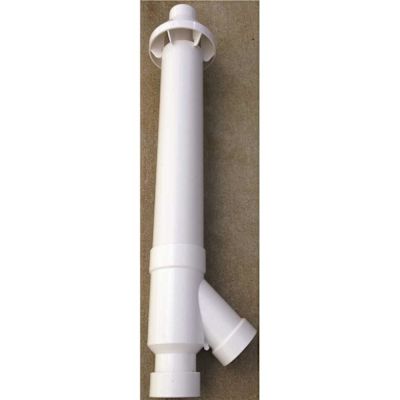

Goodman Concentric Kit, 2 in.
Product Overview
The GOODMAN concentric vent termination kit is an optional accessory for use with GOODMAN furnaces of 90% AFUE or higher (furnaces requiring PVC vent piping). The kit makes it possible to use the optimal 2-pipe installation for these furnaces while only cutting 1 hole through the wall or roof. Instead of a separate hole for the exhaust pipe and a separate hole for the combustion air intake pipe, this kit merges the 2 pipes into a single concentric vent pipe which passes through the wall or roof. A specially designed rain cap draws combustion air in from 1 direction while directing exhaust in another direction.
- Required vent size: 2 in.
- Diameter of terminating pipe: 3.5 in.
- Required diameter of opening: 4 in.
- Length of termination kit: 33.5 in.
Documentation
Assembly InstructionsSpecifications
Color
White
Color/Finish Family
White
HVAC Product Type
HVAC Part
Manufacturer Warranty
No Warranty
Part Type
Cap/Cover
Product Depth (in.)
6.75
Product Height (in.)
34.75
Product Weight (lb.)
6
Product Width (in.)
7.75
Warranty
No Warranty
