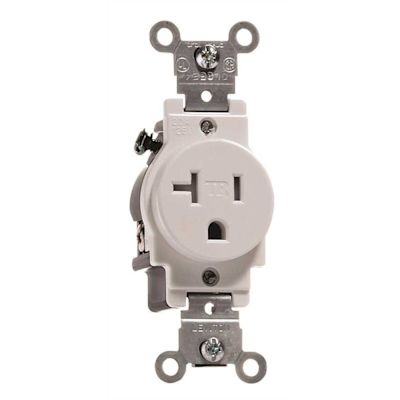

Leviton 20 Amp 125 V Tamper Resistant Single Outlet/Receptacle, White (1-Pack) T5020-W

Item # 606748 | Leviton Part # 131-T5020-00W | UPC Code 078477381809 | UNSPSC Code 39121406 | Catalog Page #1002
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The Leviton T5020 is a narrow body single receptacle from Leviton's product line of Tamper Resistant (TR) receptacles. It is designed to withstand demanding environments. The receptacle features impact resistant thermoplastic nylon body. This narrow body single receptacle is perfect for use in hospitals, schools, hotels and commercial office buildings. For over 20-years, tamper resistant receptacles have been mandated in pediatric care areas. Thanks to tamper resistant receptacles, there is no need to worry about electrical injuries. This receptacle is available in a wide assortment of configurations. Among them are tamper resistant, isolated ground, etc. This is a grounded type unit. The Leviton brand provides only high-quality products which meet the National Electrical Manufacturers Association standards.

  • Large-head terminal screws, backed out and staked, accept NO.10 copper or copper-clad wire
  • Heavy-duty brass power contacts for maximum conductivity and plug retention
  • Heavy-gauge, rust-resistant steel mounting strap
  • Convenient washer-type break-OFF plaster ears for best flush alignment

Proposition 65 Information

Prop65 Warning Icon WARNING: These products may contain a chemical known to the State of California to cause cancer, birth defects or other reproductive harm - www.P65Warnings.ca.gov

Specifications

Amperage
20, 20 amp
Certifications and Listings
ANSI Certified
Color
White
Commercial/Residential
Commercial, Residential
Features
No Additional Features
Grounding
Grounded
Included
No Additional Items Included
Indoor/Outdoor
Indoor
Manufacturer Warranty
10 Year Limited
Maximum Amperage
20, 20 amp
Mounting Type
In-Wall
NEMA Configuration
NEMA 5
Number of Outlets
1
Number of Poles
2
Package Quantity
1
Standard Color Family
White
Voltage
125, 125 volt
Certifications
CSA US UL

Warranty

10 Year Limited
