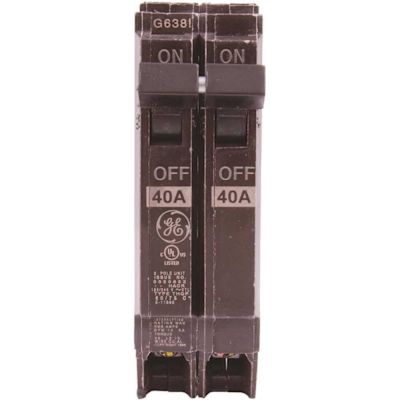

GE Q-Line 40 Amp 1 in. Double Pole Circuit Breaker (THQP240)

Item # 608057 | GE Part # THQP240 | UPC Code 783164085754 | UNSPSC Code 39121601 | Catalog Page #1083
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

The GE Q-Line 40 Amp 1 in. Double-Pole Circuit Breaker has a case made of heat-resistant thermoset for stability and structural integrity. The unit has tin-plated copper stabs to create reliable, permanent and corrosion-resistant connections. The circuit breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance.

  • THQP circuit breakers can only be used in 1/2 in. compatible GE load centers
  • Tin-plated copper stabs create reliable, permanent and corrosion-resistant connections
  • Box type terminals
  • Calibration screw is cemented to prevent shifting
  • Case is made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position
  • Meets NEMA standards
  • ANSI certified and CSA and UL Listed

Specifications

Breaker Type
Standard
Certifications and Listings
UL Listed
Manufacturer Warranty
One year warranty from first use
Maximum Amperage
40, 40 amp
Number of Poles
Double
Number of Spaces
1
Pack Size
1, 1 Pack
Product Depth (in.)
1
Product Height (in.)
3
Product Weight (lb.)
.392
Product Width (in.)
3.375
Voltage
240, 240 volts
Certifications
UL

Warranty

One year warranty from first use
