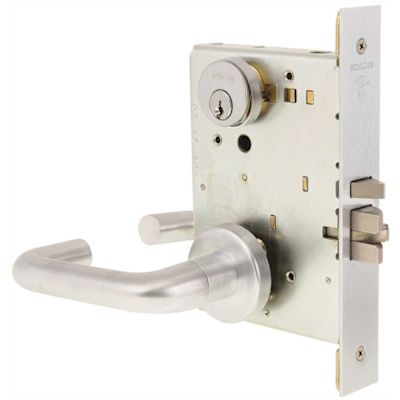

Schlage SCHLAGE L MORTISE STOREROOM LOCKSET WITHOUT ESCUTCHEON SATIN CHROME

Schlage SCHLAGE L MORTISE STOREROOM LOCKSET WITHOUT ESCUTCHEON SATIN CHROME

Item # 715537 | Schlage Part # L9080P 03A 626 KDC 10-072 | UPC Code 500227168656 | UNSPSC Code 46171500

Log in to see your price.



Schlage SCHLAGE L MORTISE STOREROOM LOCKSET WITHOUT ESCUTCHEON SATIN CHROME

Item # 715537 | Schlage Part # L9080P 03A 626 KDC 10-072 | UPC Code 500227168656 | UNSPSC Code 46171500
Schlage SCHLAGE L MORTISE STOREROOM LOCKSET WITHOUT ESCUTCHEON SATIN CHROME
Open Expanded View
Qty:

Log in for product availability.

Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print
Product Overview Documentation Specifications More Related Terms

Product Overview

Latchbolt retracted by key outside or by lever inside. Outside lever always inoperative. Auxiliary latch deadlocks latchbolt when door is closed

  • Recommended for use on all commercial and institutional applications where normal to heavy traffic is anticipated
  • Without escutcheon
  • Door Thickness: 1-3/4"
  • Backset: 2-3/4" standard
  • Latch: 3/4" throw stainless steel with anti-friction tongue
  • Deadbolt: 1" throw stainless steel
  • Case Size: 4-7/16" x 6-1/16" x 1"
  • Armor Front: 1-1/4" x 8"
  • Cylinder: 6 pin solid brass keyed 5, Schlage C, KD
  • Certification: ANSI: A156.13, 1994, Series 1000, Grade 1, Operational, Grade 1 Security, U.L. 3 Hr.
  • Strike: 1-1/4" x 4-7/8" square corner, 1-3/16" lip, box
  • Keys: 2 nickel silver cut keys per lock, 5 pin, C section
  • Finish: 626 (Satin Chrome)
  • Packed: 6 per case

Documentation

Product Brochure

Specifications

Backset
2-3/4"
Color
Satin Chrome
Door Locks & Knobs Product Type
Mortise Locks
Mortise Locks Type
Lever
Style
Traditional
