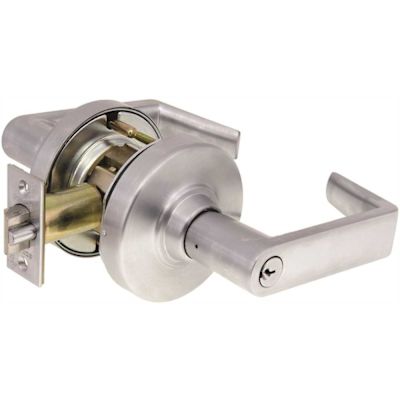

Schlage SCHLAGE D GRD 1 RHODES CLASSROOM LEVERSET 2-3/4" BS SC1 SAT CHRME
Item # 715572
|
Schlage
Part #
ND70PD RHO 626 KDC 13-047
|
UPC Code 500227168700
|
UNSPSC Code 46171500
Product Overview
Outer lever locked, unlocked by key from outside. Inner lever always open
- Recommended for use on all commercial, educational and institutional applications where normal to heavy traffic is anticipated
- Cylindrical design - no exposed parts
- Unconditional warranty
- Heavy-duty lock chassis
- Lever style: Rhodes
- Door Thickness: 1-5/8" - 2"
- Backset: 2-3/4" standard
- Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1/2" throw
- Cylinder: 6 pin solid brass keyed 5
- Keyways: C†Keyway
- Keying: KD
- Certification: ANSI: A156.2, 1996, Series 4000, Grade 1, U.L. Listed for 3 hour fire rated door
- Strike: 1-1/4" x 4-7/8", ANSI, square corner, no box
- Keys: 2 nickel silver cut keys per lock, 5 pin, C section
- Latch: 1/2" throw
- Hand: Reversible
- Packed: 6 per case
- Hand: Reversible
- Finishes: 626 (Satin Chrome)
- Cylindrical design - no exposed parts
- Unconditional warranty
- Heavy-duty lock chassis
- Lever style: Rhodes
- Door Thickness: 1-5/8 - 2
- Backset: 2-3/4
- Latch: 1-1/8 x 2-1/4, square corner faceplate, 1 housing diameter, 1/2 throw
- Cylinder: 6 pin solid brass keyed 5
- Keyways: C Keyway
- Keying: KD
- Certification: ANSI: A156.2, 1996, Series 4000, Grade 1, U.L. Listed for 3 hour fire rated door
- Strike: 1-1/4 x 4-7/8, ANSI, square corner, no box
- Keys: 2 nickel silver cut keys per lock, 5 pin, C section
- Latch: 1/2 throw
- Hand: Reversible
- Packed: 6 per case
- Hand: Reversible
- Finishes: 626 (Satin Chrome)
Documentation
Product BrochureSpecifications
Backset
2-3/4"
Color
Satin Chrome
Door Locks & Knobs Product Type
Classroom Levers
Style
Modern
