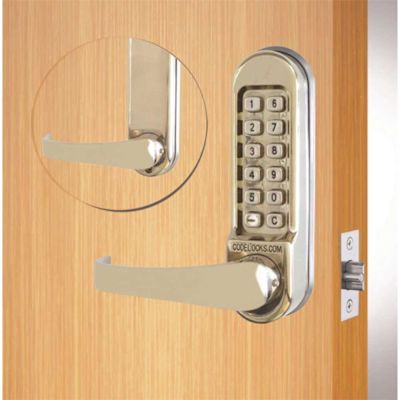

Codelocks 515 Stainless Steel Mechanical Keypad Door Lever

Item # 716313 | Codelocks Part # CL515 SS | UPC Code 817083022788 | UNSPSC Code 46171520
Add to Favorites List Add to Customized Product Offering Remove From Customized Product Offering Add To Bin Labels Added to Bin Labels. Click icon to print Bin Labels. Add To Custom Catalog Added To Custom Catalog. Click icon to print Custom Catalog. Email Print

Product Overview

Heavy-duty tubular mortice latch. The outside lever handle will retract the latch after a correct code is entered. The spring loaded latch bolt will lock automatically when the door is closed. Supplied with a random code commencing with the C clear button. To change the code after fitting, the lock must first be removed from the door. The code is non-sequential, that is the code can be entered in any order example: 1234 can be 4321 or 1342 or whatever is the most convenient sequence. with the 11 buttons a total of 2,047 different codes are available, any of which may be entered in any order.

  • Heavy-duty code lock
  • PVD low maintenance finish
  • Full size lever handles
  • 8 options available
  • 2,047 non-sequential codes available
  • Passage function option available
  • Mortise latch and mortise lock functions
  • Available in stainless steel or polished brass finish
  • Suitable for internal and external use

Proposition 65 Information

Prop65 Warning Icon WARNING: NULL

Specifications

Assembled Depth (in.)
2.875
Assembled Height (in.)
7
Assembled Width (in.)
1.875
Backset size (in.)
2-3/4 in
Certifications and Listings
No Certifications or Listings
Commercial/Residential
Commercial
Door Handing
Universal
Door Locks & Knobs Product Type
Mechanical Keypad
Finish
Stainless Steel
General Material
Zinc
Hardware Finish Family
Stainless Steel
Included
No Additional Items Included
Manufacturer Warranty
limited lifetime warranty
Maximum user codes
1
Product Weight (lb.)
6
Security/ANSI Grade
N/A

Warranty

limited lifetime warranty
